Repair information 4-27
5061
Autocompensator pick assembly removal
See “Pick assembly 500-tray” on page 7-21 for the part number.
1. Remove the transfer plate assembly. See “Transfer plate assembly removal” on page 4-95.

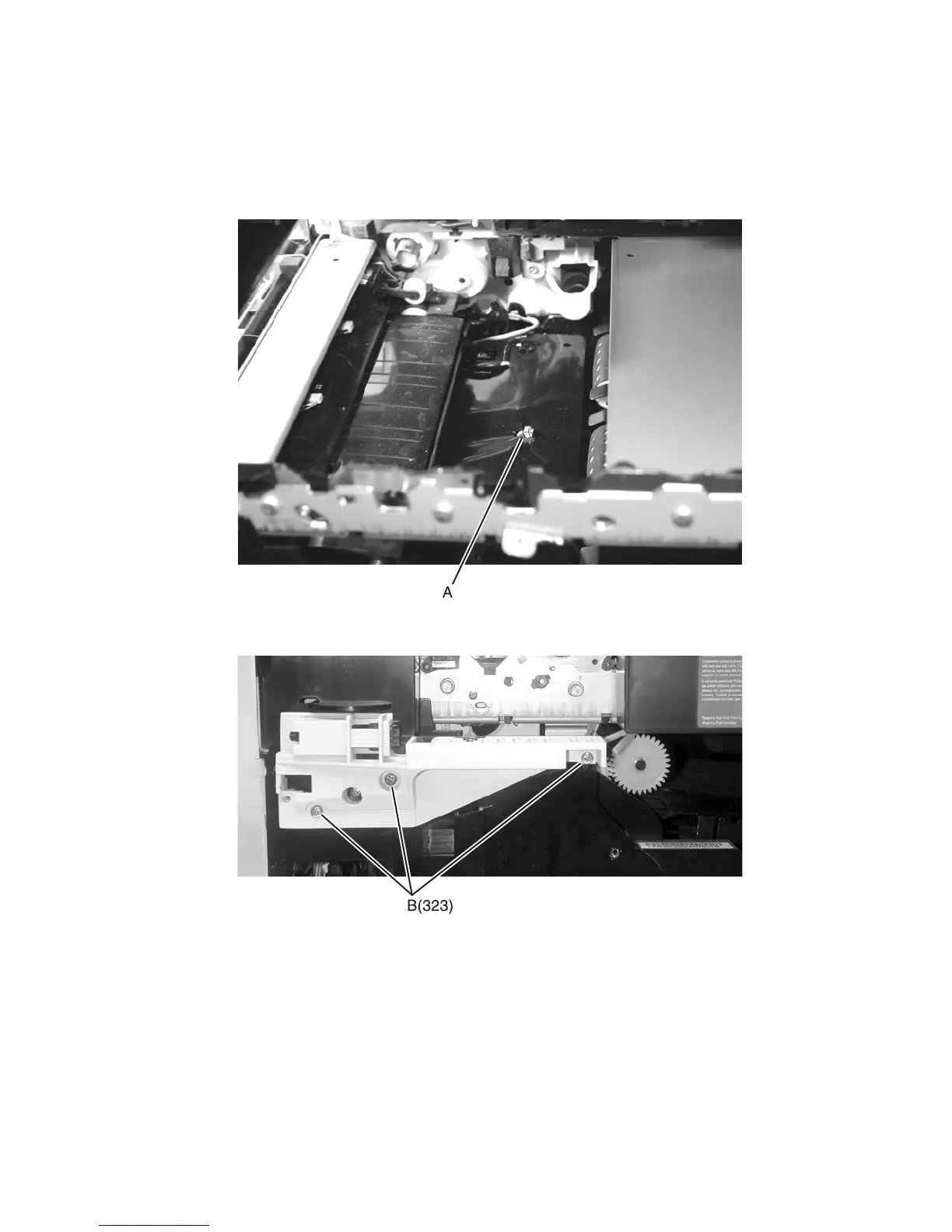

2. Cut the cable tie (A) and remove the black mylar piece.
3. Remove the front lower left cover. See “Front lower left cover removal” on page 4-17.
4. Remove the three screws (B) type “323” on page 4-3 to remove the front left handle cover assembly.
