4-52 Service Manual
5061
ITU drive assembly removal
See “ITU drive assembly Also order cable tie parts packet (P/N 40X1648).” on page 7-23 for the part
number.
1. Remove the ITU assembly. See “ITU assembly removal” on page 4-49.
2. Remove the black cartridge drive assembly. See the removal for the “Cartridge drive assembly
removal” on page 4-38.

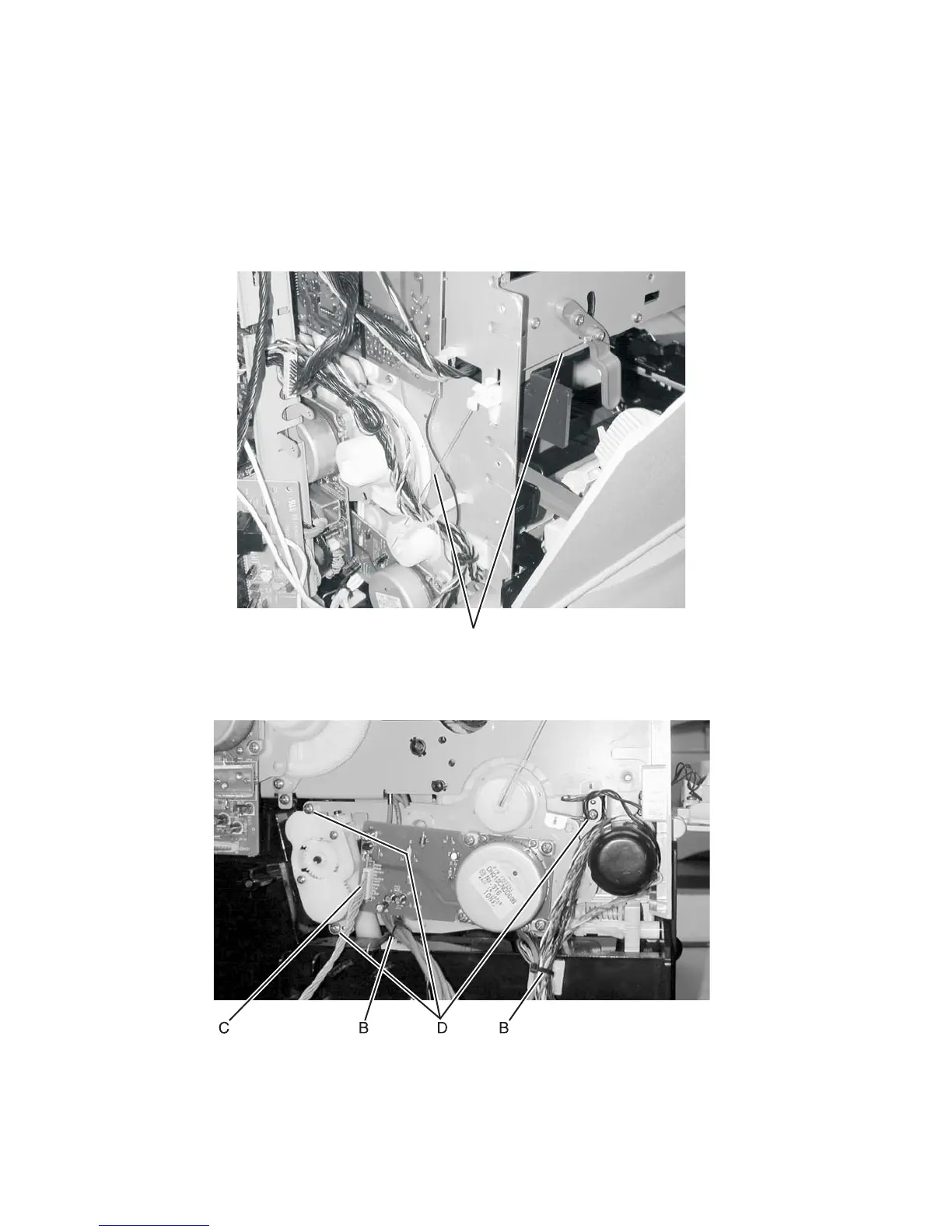

3. Disconnect the ITU drive coupling cable (A).
4. Cut the two cable ties (B).
5. Disconnect the ITU drive motor cable (C).
6. Remove the three ITU drive assembly mounting screws (D), and disconnect the ITU drive motor cable (D).
7. Move the bottom of the ITU drive assembly toward you as you rotate the top of the assembly out of the
printer. Be careful not to damage the large drive gear as you remove the ITU drive assembly.
Installation note: Be sure to replace all the cable ties.
