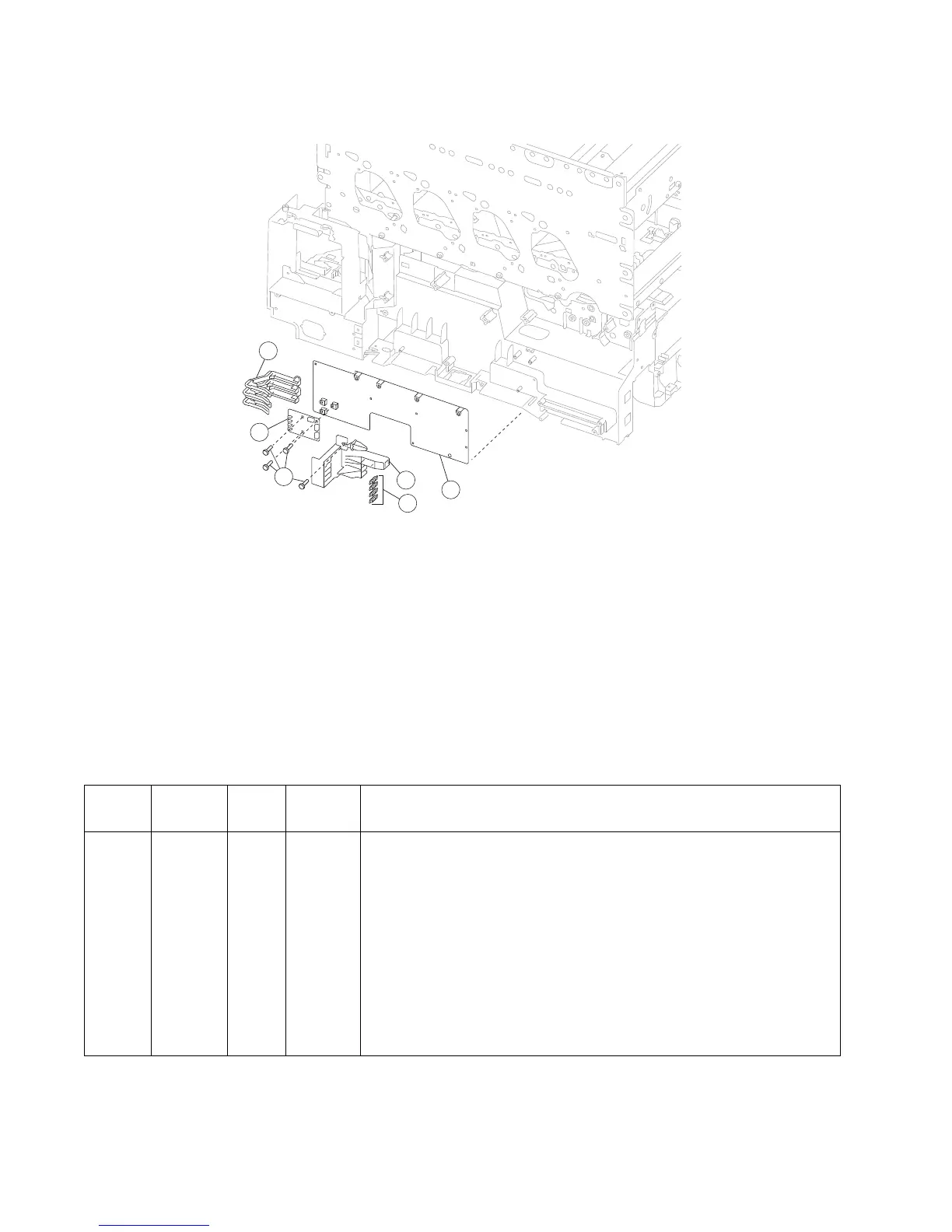

Assembly 10: Media size sensing

Asm-

Index

Part

number

Units/

mach

Units/

FRU

Description

10–1 40X1700 1 1 System board shield support with clips

Also order cable tie parts packet (P/N 40X1648)

2 40X1698 1 1 Media size sensing bracket

Also order cable tie parts packet (P/N 40X1648)

3 40X1697 4 4 Media size sensing spring

Also order cable tie parts packet (P/N 40X1648)

4 4 4 Screw type 232, parts packet, 40X1676 (media size sensing assembly

mounting)

5 40X1699 1 1 Media size sensing board assembly

Also order cable tie parts packet (P/N 40X1648)

6 40X1696 4 4 Media size sensing link

Also order cable tie parts packet (P/N 40X1648)
