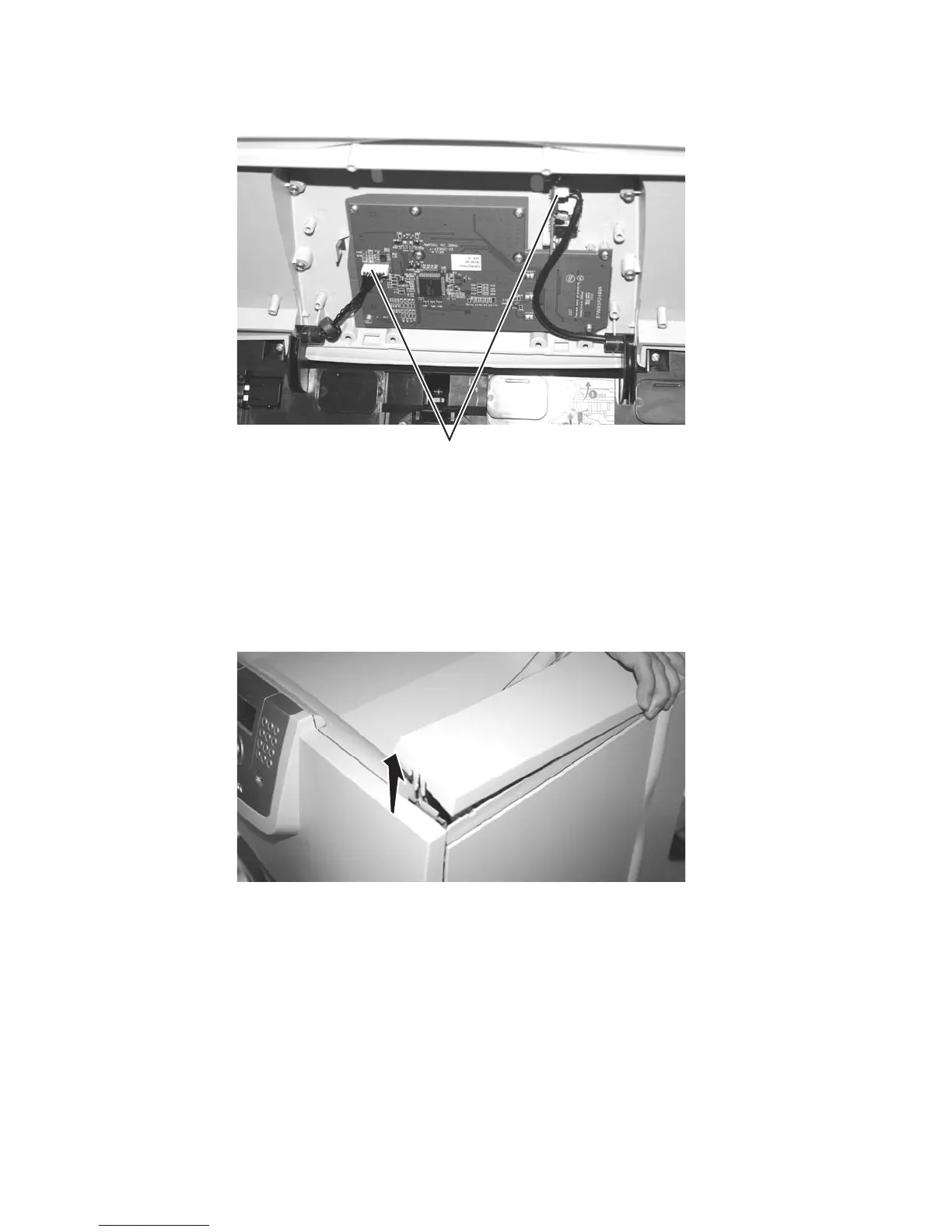

5. Unplug the two cables (B) from the operator panel assembly.
6. Remove the front cover.
7. Remove the operator panel. See “Operator panel assembly removal” on page 4-68.
Note: Set aside the operator panel assembly and front cover backplate assembly for reinstallation. The
operator panel is not part of the front cover FRU.
Redrive cap removal
See “Redrive cap cover assembly” on page 7-3 for the part number.
Lift the redrive cap to remove it.
