4-58 Service Manual
5061
Media size sensing board removal
See “Media size sensing board assembly Also order cable tie parts packet (P/N 40X1648)” on page 7-16
for the part number.
1. Remove the rear cover. See “Rear cover removal” on page 4-22.

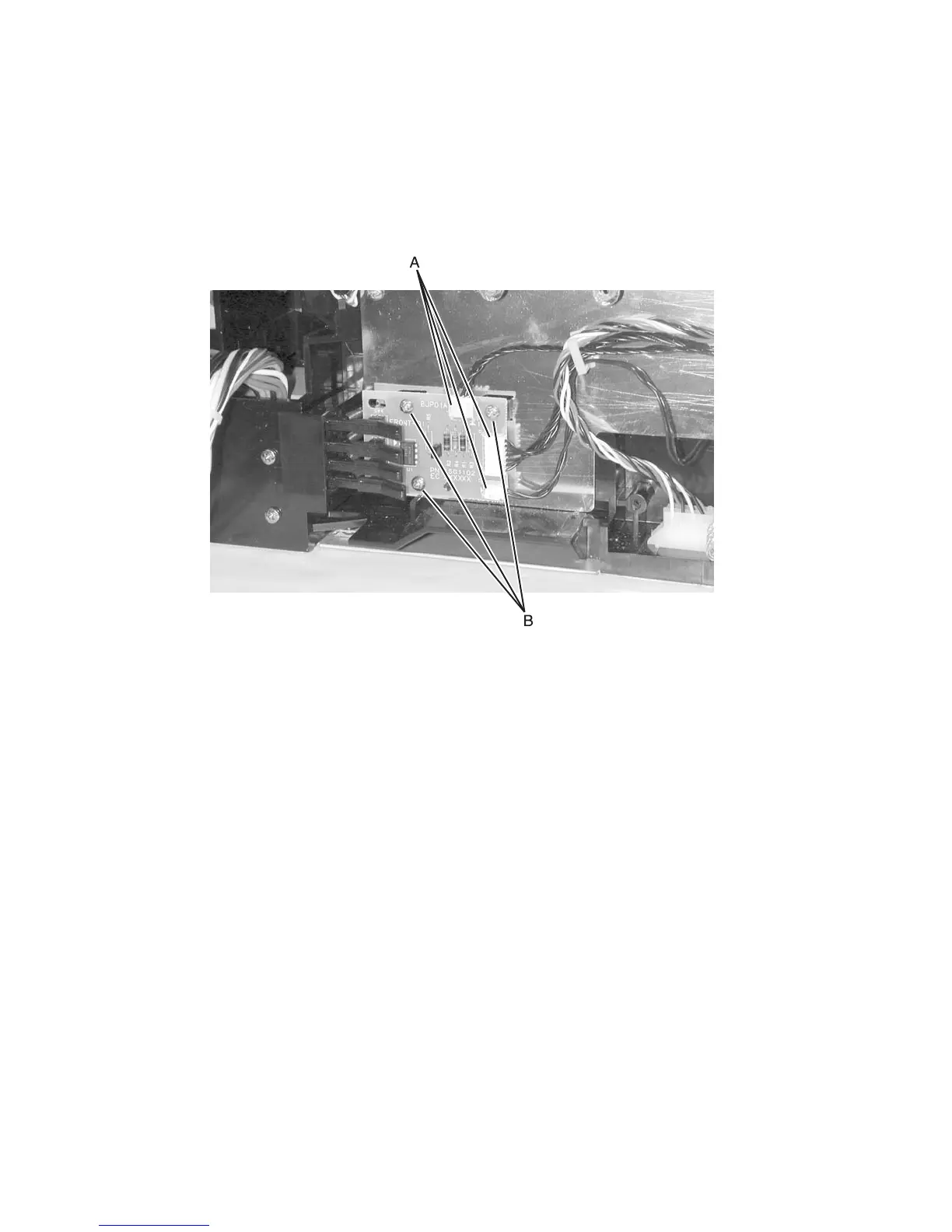

2. Disconnect the cables (A).
3. Remove the media size sensing board screws (B).
4. Remove the board.
Installation note: Be sure to replace all cable ties.
