Lexmark C78x - Cartridge Drive Assembly; ITU Drive Assembly

Preventive maintenance 6-3
5061

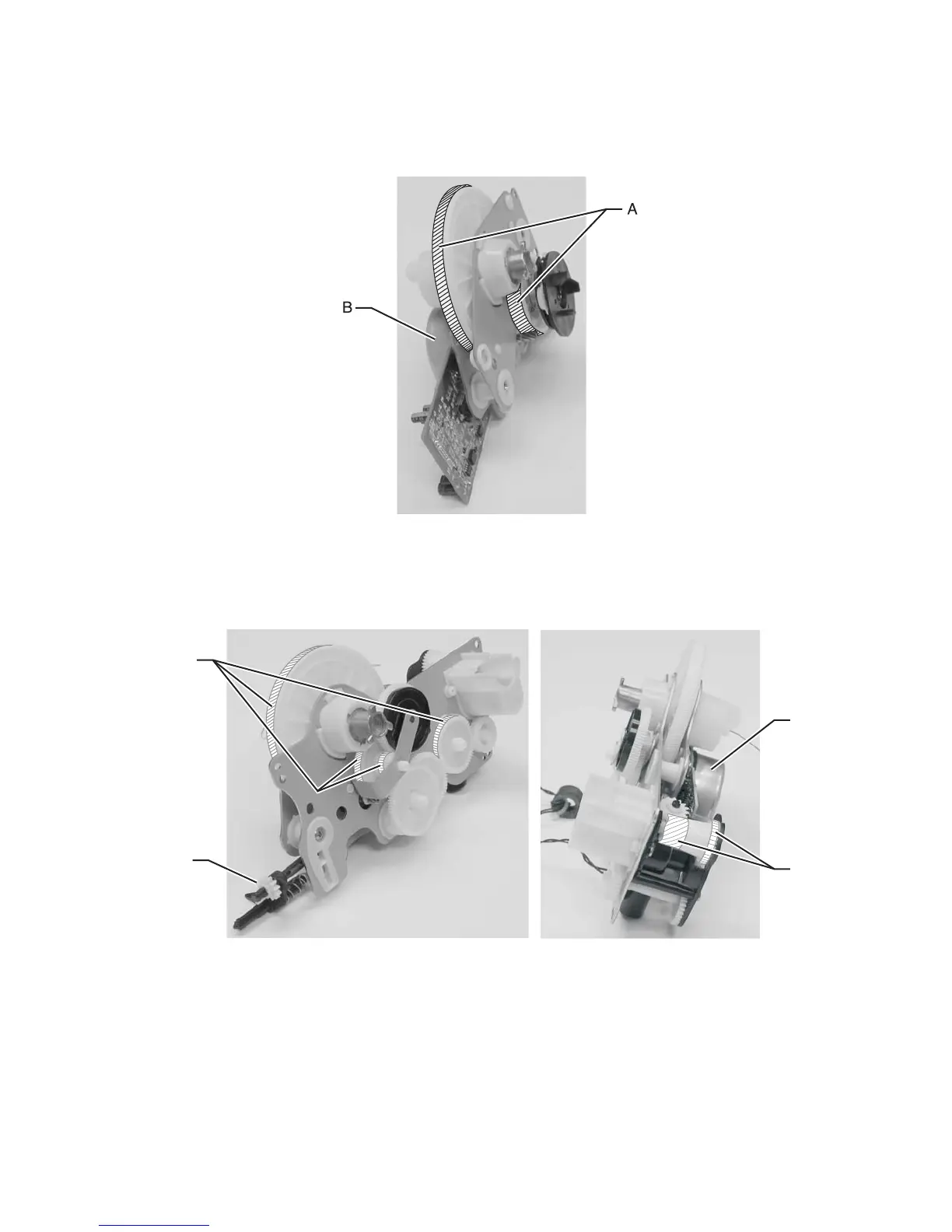

Cartridge drive assembly
1. Apply a thin coating of Nyogel type 744 grease to the points identified (A) from the supplied packet.
2. Rotate the motor housing (B) to distribute evenly.
ITU drive assembly
1. Apply a thin coating of Nyogel type 744 grease to the points identified (A) from the supplied packet.
Note: Do not lubricate Gear 58 (C).
2. Rotate the motor housing (B) to distribute evenly.
A
A
B
C
