Repair information 4-13
5061
Top cover assembly removal
See “Top cover assembly Also order cable tie parts packet (P/N 40X1648)” on page 7-3 for the part number.
1. Remove the redrive cap. See “Redrive cap removal” on page 4-12.
2. Remove the front right light shield screw. See “Front right light shield removal” on page 4-42.

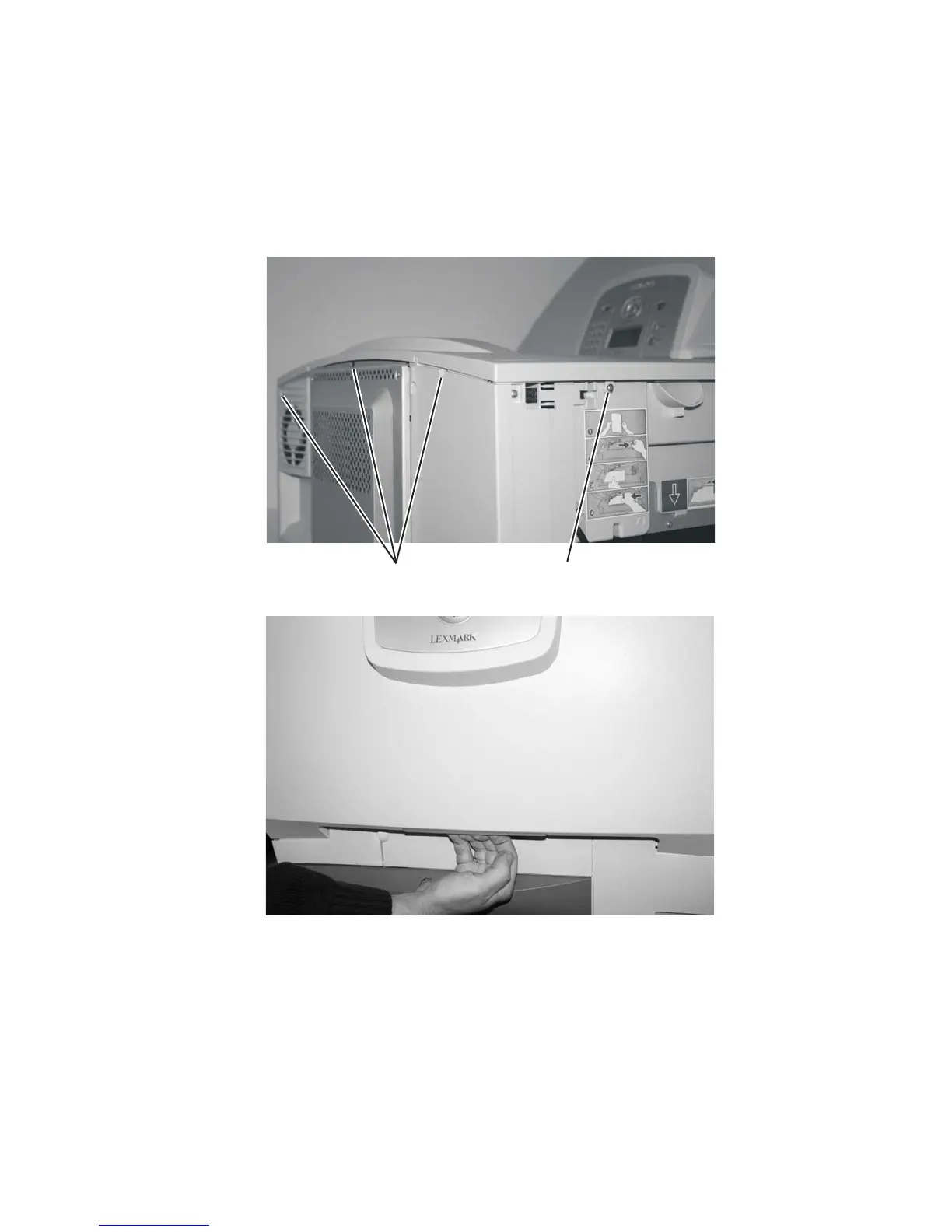

3. Remove the top cover screws (A) from the rear of the printer.
4. Open the MPF, and remove the top cover screw (B) from the left side of the printer.
5. Open the front cover assembly.
To Next Page
