4-14 Service Manual
5061

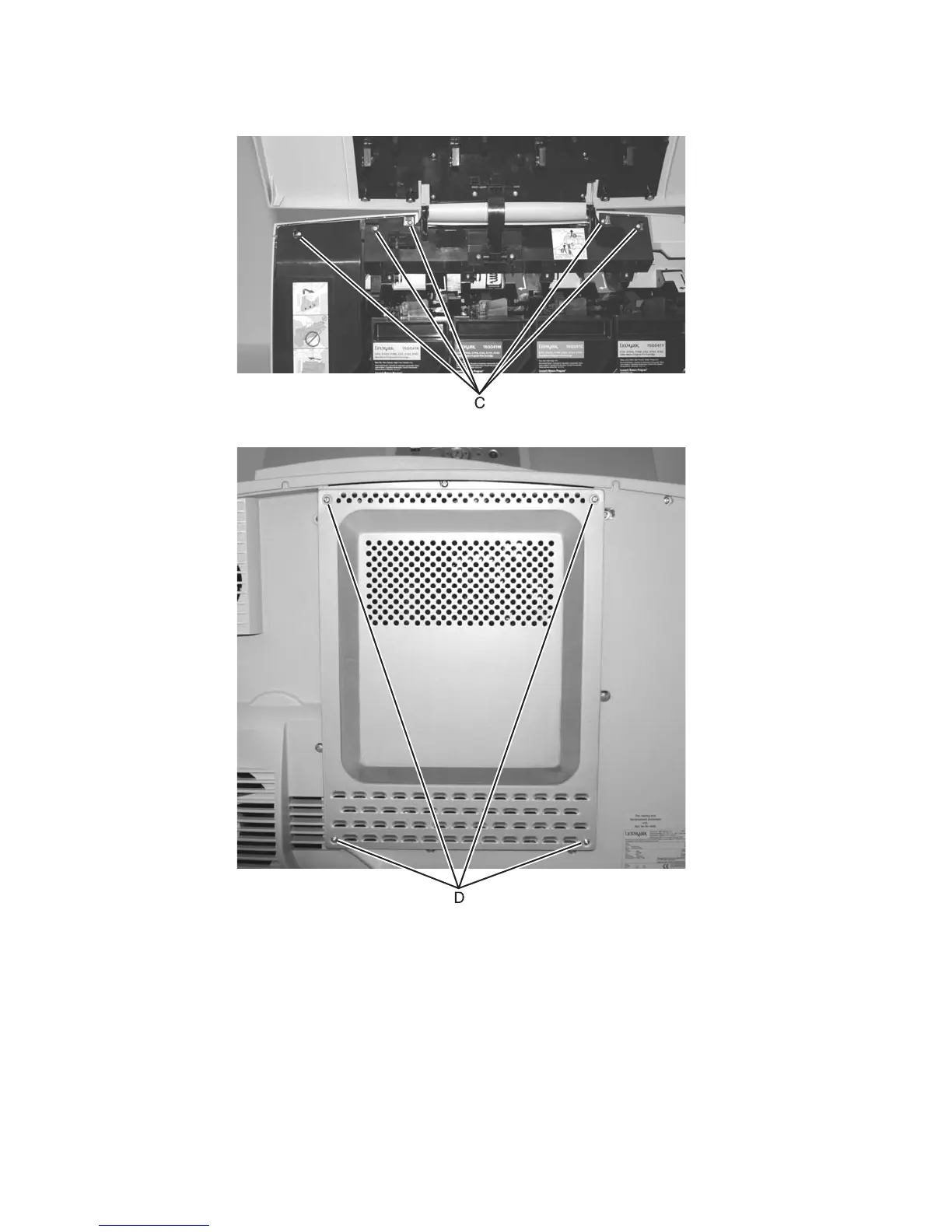

6. Remove the top cover mounting screws (C) from the front of the printer.
7. Remove four screws (D) holding the outer system board shield.
8. Remove the shield.
