4-92 Service Manual
5061
Transfer HVPS board removal
See “Transfer HVPS board” on page 7-34 for the part number.
1. Remove the rear cover. See “Rear cover removal” on page 4-22.

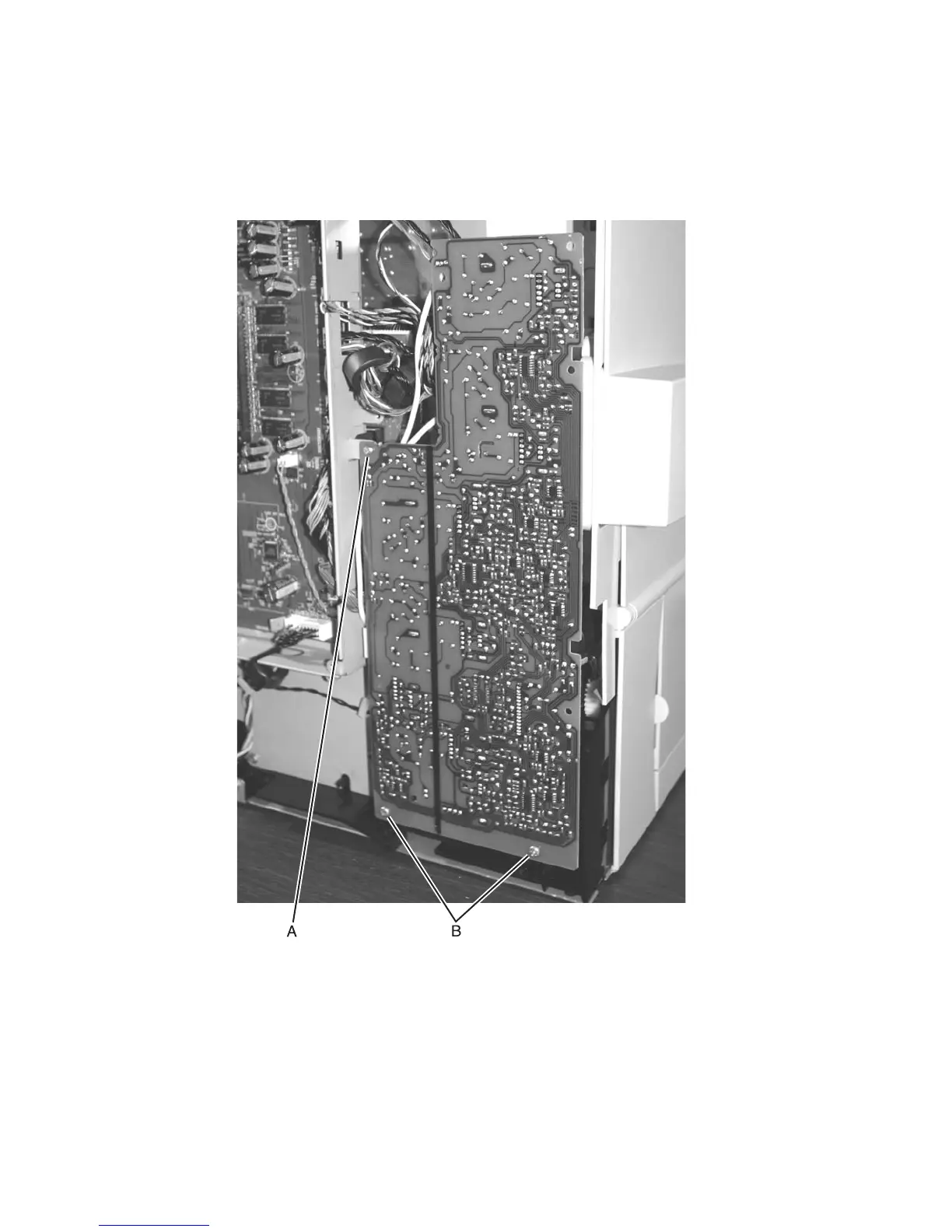

2. Remove screw (A) and the two screws (B) on the bottom of the transfer HVPS.
