Repair information 4-91
5061

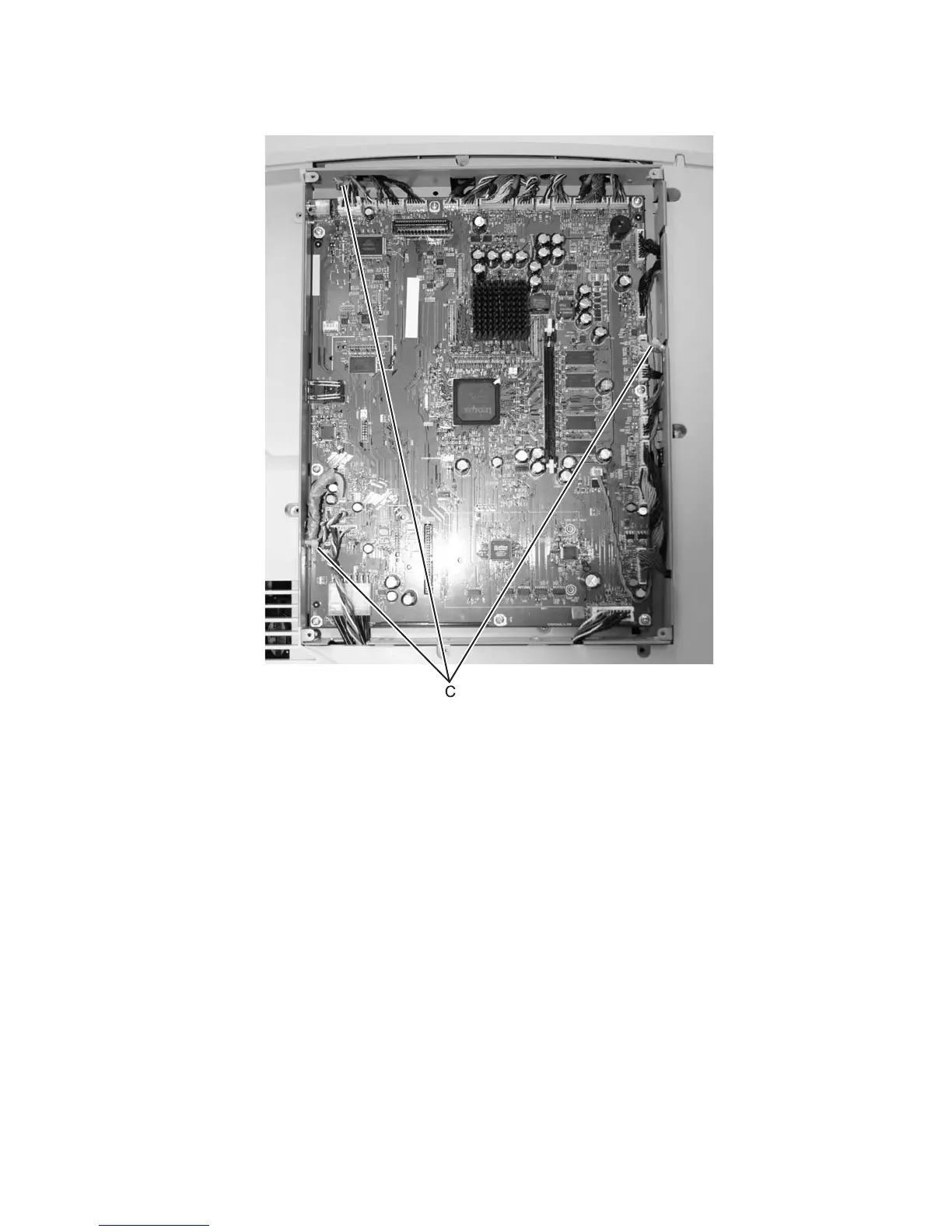

5. Clip the cable ties (C).
6. Remove the system board.
Note: When reinstalling the system board, verify the input and output option cables are fully connected.
Replace all cable ties.
To verify the input sources are recognized:
1. On the operator panel, at the Ready prompt, select Paper Menu.
2. Select Paper Source.
3. Make sure all installed options are listed.
To verify the output options are recognized:
1. At the Ready prompt, select Paper Menu.
2. Select Output Bin.
3. Make sure all installed options are listed.
