5-18 Service Manual
5061

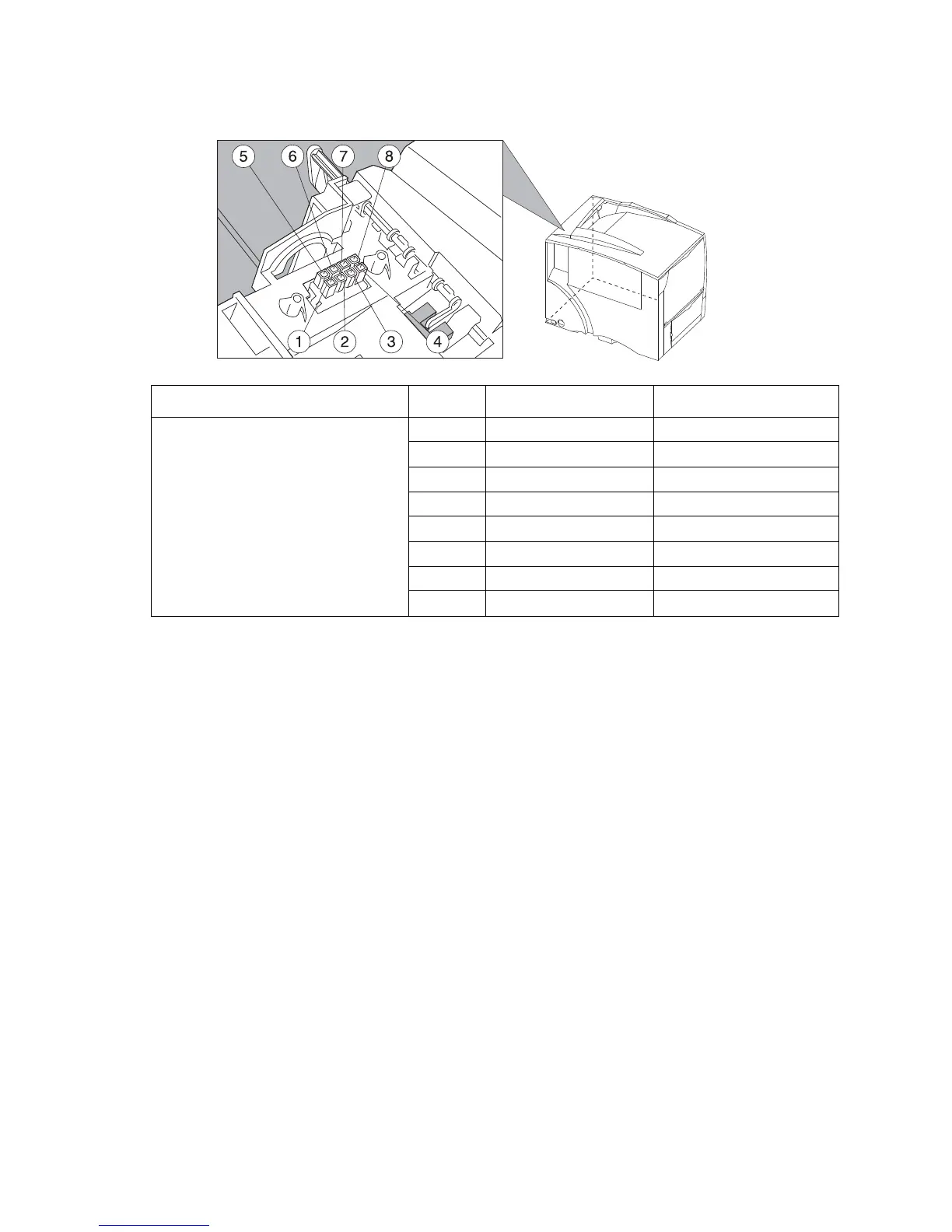

Autoconnect—top
Connector Pin no Color Signal
CN1 Autoconnect—top 1 White +24 V dc
2 Black Ground
3 Yellow Printer RXD
4 Black Ground
5N/A NC
6 Red +5 V dc
7 Black Ground
8 Blue Printer TXD
