Repair information 4-17
5061

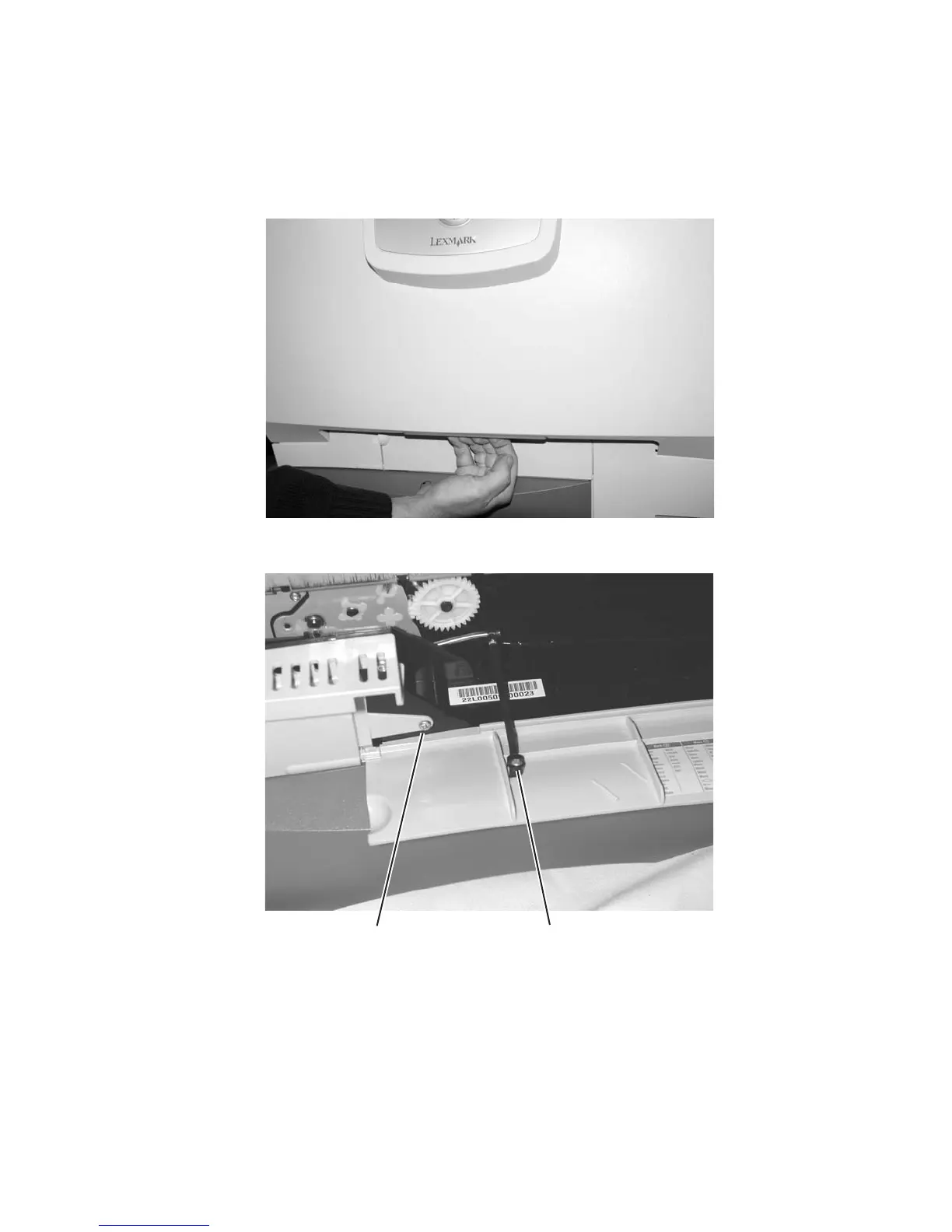

Front lower left cover removal
See “Front lower left cover” on page 7-3 for the part numbers.
1. Remove the paper tray.
2. Open the front cover assembly.
3. Open the paper path access door, carefully remove screw (A) type “323” on page 4-3 and screw (B), and
close the door.
To Next Page
