4-40 Service Manual
5061
Friction buckler and buckler housing removal
See “Friction buckler and buckler housing” on page 7-19 for the part number.

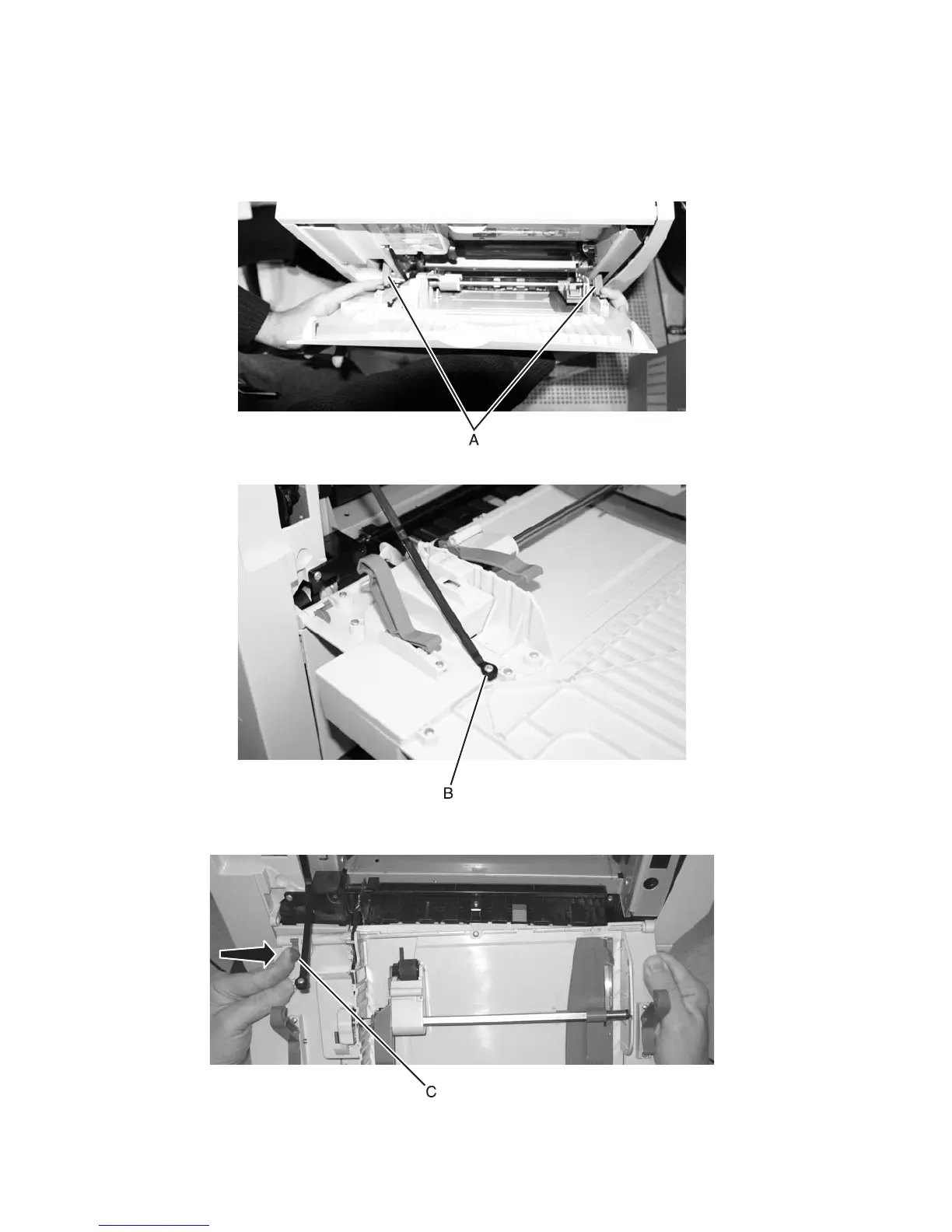

1. Open the MPF, and press the releases (A) to open the MPF to the lowest position.
2. Remove the MPF cable cover screw (B).
3. Release the MPF latch (C), and lower the MFP door down. Support the tray to relieve pressure on the MPF
switch cable.
