Lexmark C78x - ITU Assembly Removal

Repair information 4-49
5061
ITU assembly removal
See “ITU assembly—1xx/3xx only” on page 7-22 for the part number.
1. Open the front cover assembly.
2. Remove the toner cartridges.

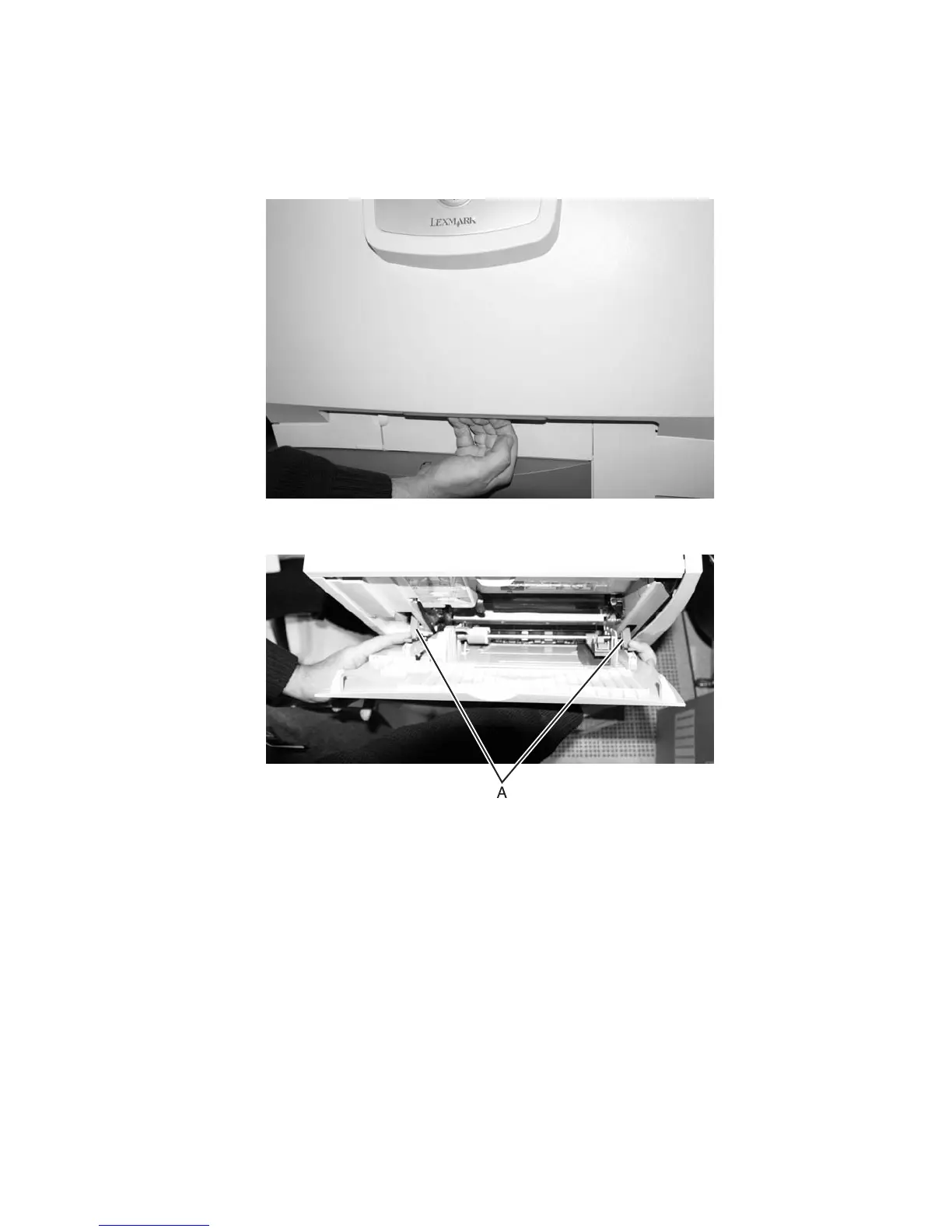

3. Open the MPF, and press the releases (A) to open the MPF to the lowest position.
