Lexmark C78x User Manual

4-10 Service Manual
5061

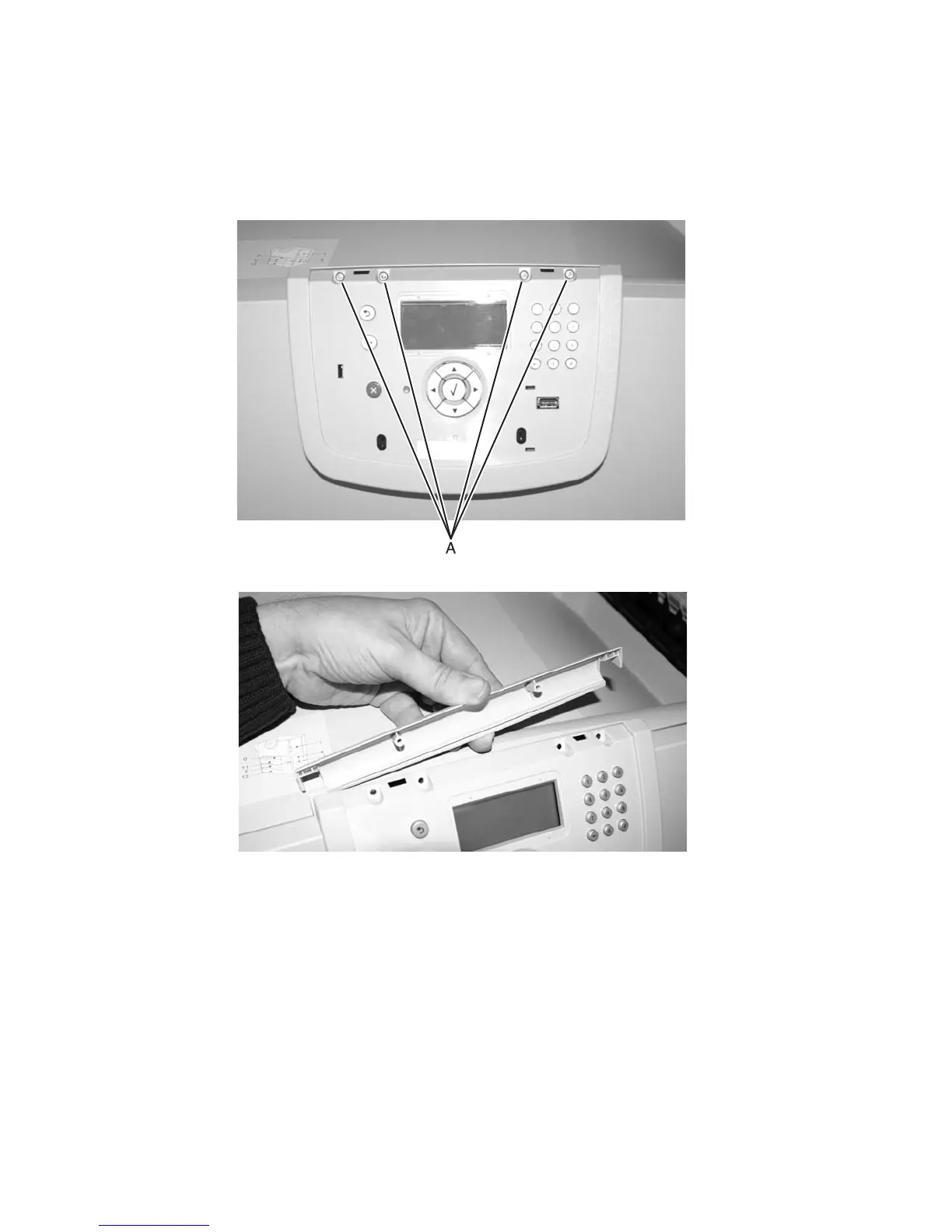

Front cover rear pivot cover removal
See “Front cover rear pivot cover” on page 7-3 for the part number.
1. Remove the bezel. See “Operator panel bezel removal” on page 4-7.
2. Remove the four screws (A).
3. Remove the front cover rear pivot cover.

Lexmark C78x Specifications

General

Brand	Lexmark
Model	C78x
Category	Printer
Language	English
