Lexmark C78x - Multipurpose Feeder (MPF) Motor Removal

4-64 Service Manual
5061
Multipurpose feeder (MPF) motor removal
See “MPF drive assembly” on page 7-19 for the part number.
1. Remove the MPF. See “Multipurpose feeder (MPF) removal” on page 4-59.
2. Remove the MPF autocompensators 1 and 2. See “Multipurpose feeder (MPF) autocompensator or
side restraints removal” on page 4-62.

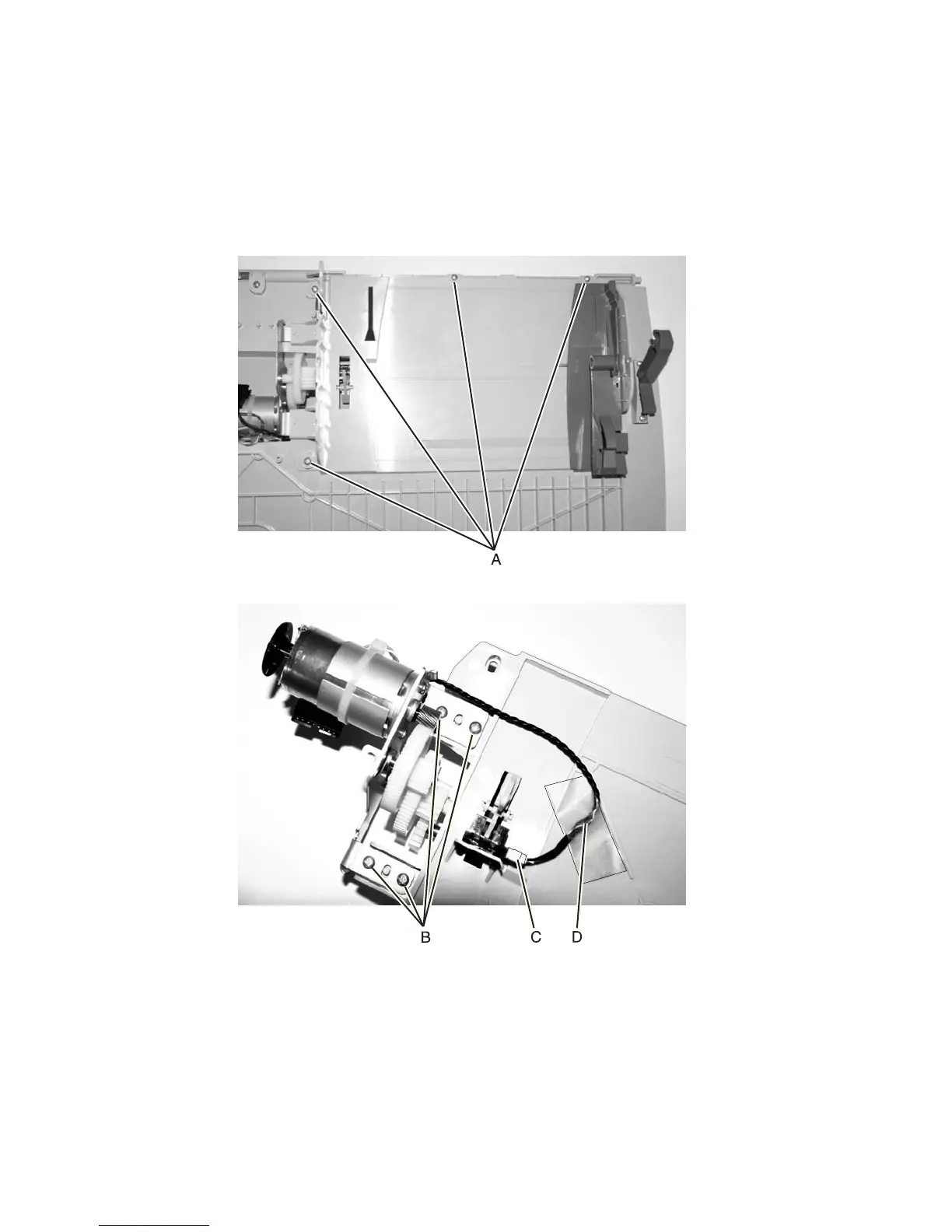

3. Remove the four screws (A) to secure the MPF inner cover.
4. Disconnect the cable (C), and remove the tape (D) securing the cable in place.
5. Turn the MPF inner cover over, and remove the four screws (B) securing the motor.
6. Remove the MPF motor.
