Connector locations 5-19
5061

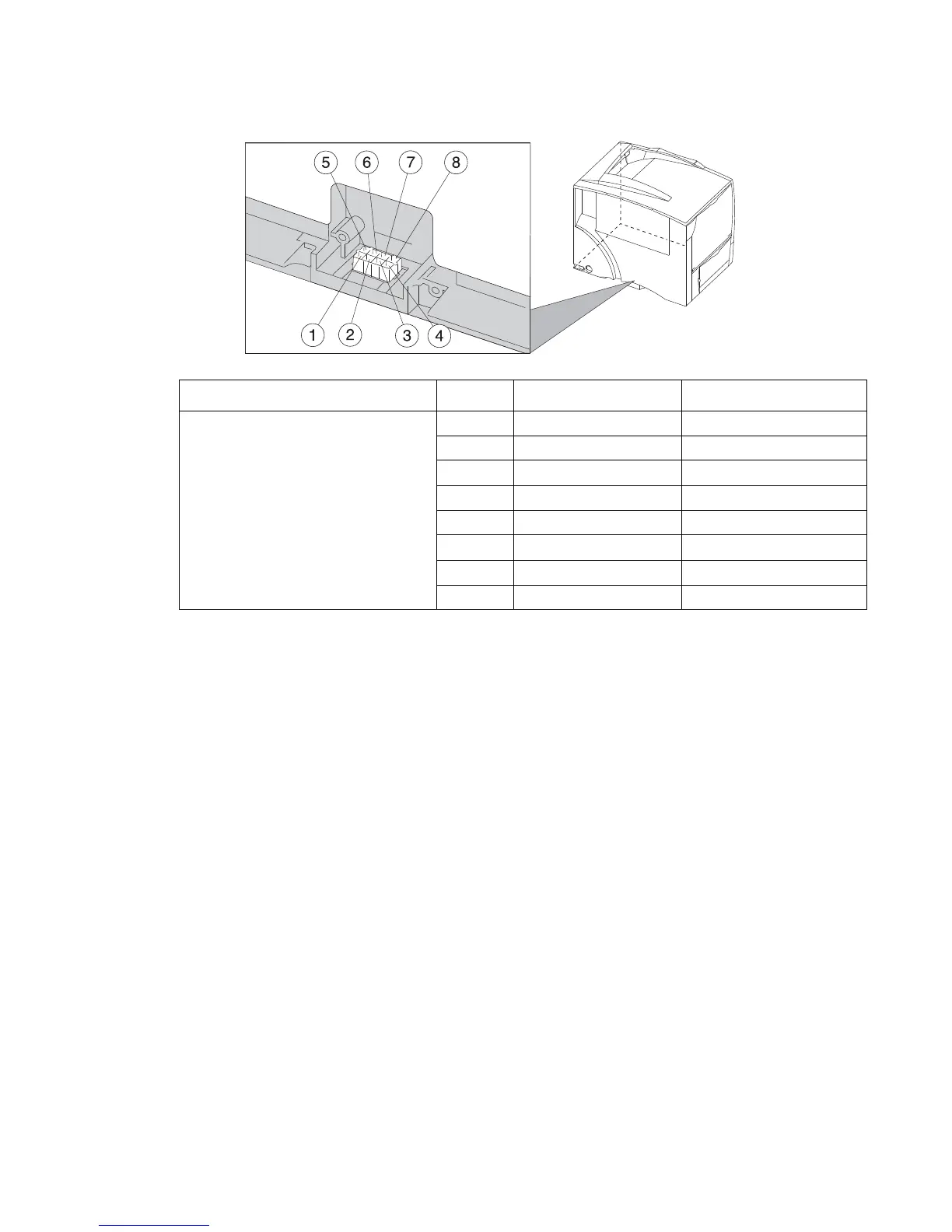

Autoconnect—bottom
Connector Pin no Signal Signal
CN1 Autoconnect—bottom 1 White +24 V dc
2 Black Ground
3 Yellow Printer RXD
4 Black Ground
5 Brown STAGING_ENCODER
6 Red +5 V dc
7 Black Ground
8 Blue Printer TXD
