Repair information 4-65
5061
Nip relief handle removal
See “Nip relief handle Also order cable tie parts packet (P/N 40X1648)” on page 7-17 for the part number.
1. Remove the left lower cover to access the nip relief handle. See “Left lower cover removal” on
page 4-24.
2. Remove waste toner container.
3. Reinsert paper tray into printer.
4. Remove the broken pieces of old handle.

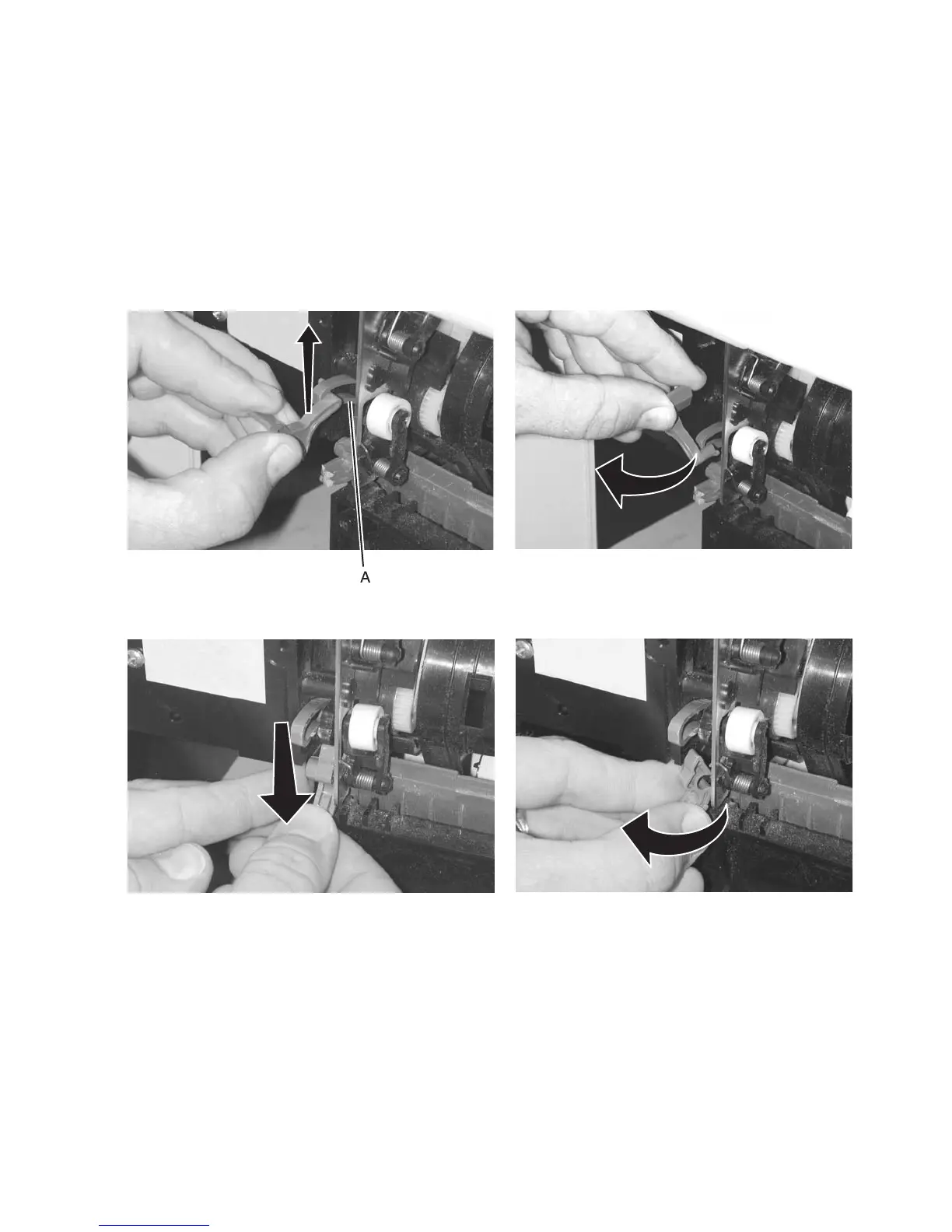

a. Pull up the upper piece of handle to raise the nip relief link (A), and rotate upper piece of handle 90°
clockwise to free it from the nip relief link.
b. Pull down the lower portion of the broken handle as far as it goes. Rotate the handle to slide off the
post.
To Next Page
