Lexmark C78x User Manual

4-62 Service Manual
5061
Multipurpose feeder (MPF) autocompensator or side restraints removal
See “MPF autocompensator pick assembly” or “MPF side restraint” on page 7-19 for the part numbers.
1. Remove the MPF. See “Multipurpose feeder (MPF) removal” on page 4-59.

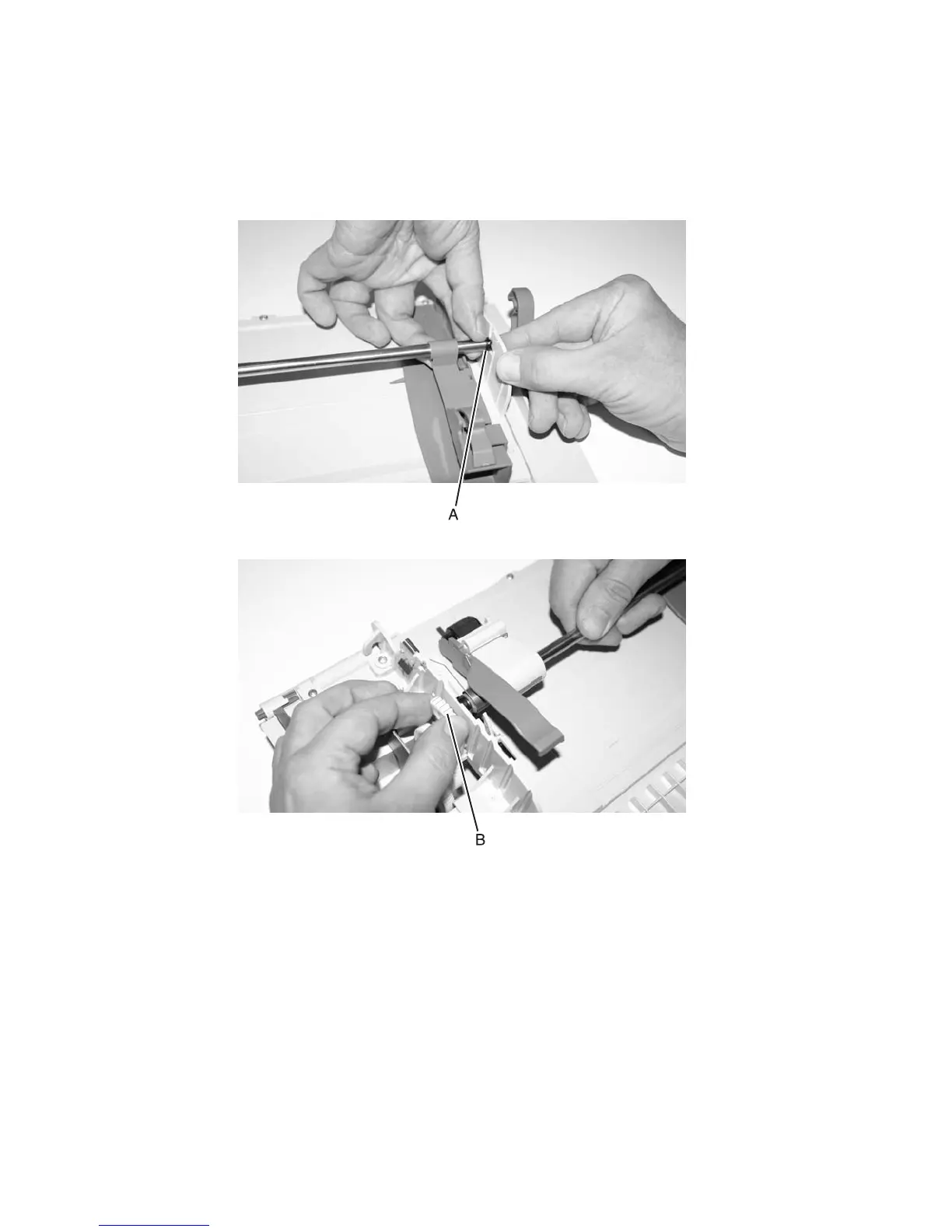

2. Remove the c-clip (A).
3. Remove the gear (B).
