Repair information 4-47
5061

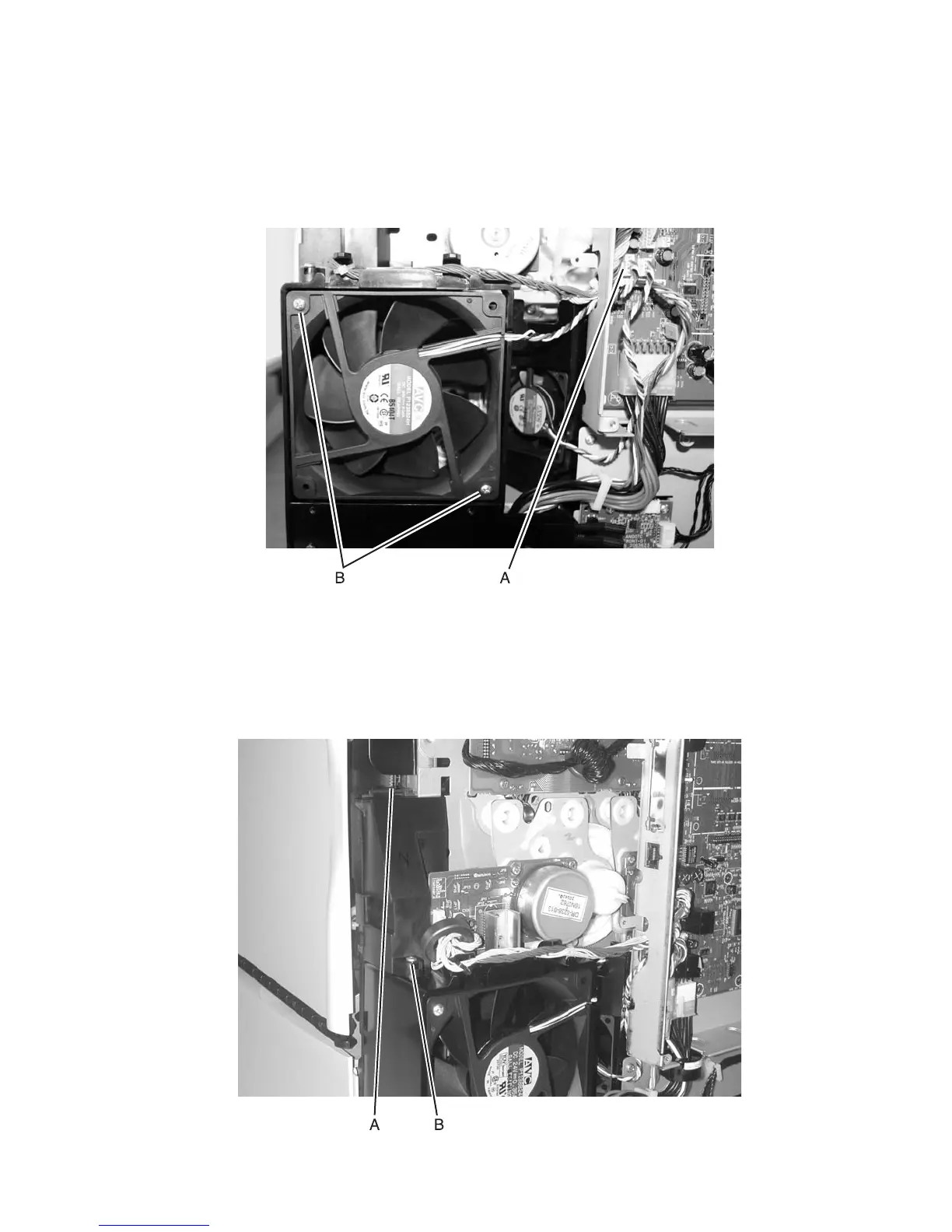

Fuser fan removal
See “Fuser fan assembly” on page 7-35 for part number.
1. Remove rear cover. See “Rear cover removal” on page 4-22.
2. Disconnect the fuser fan cable from connector JM1 (A) on the system board.
3. Remove the fuser fan screws (B), and remove the fan.
Fuser top duct removal
See “Fuser top duct” on page 7-5 for the part number.
1. Remove the rear cover. See “Rear cover removal” on page 4-22.
2. Remove the fuser top duct screw (B), and disconnect tab (A).
3. Remove the top duct.
