Lexmark C78x User Manual

7-20 Service Manual
5061

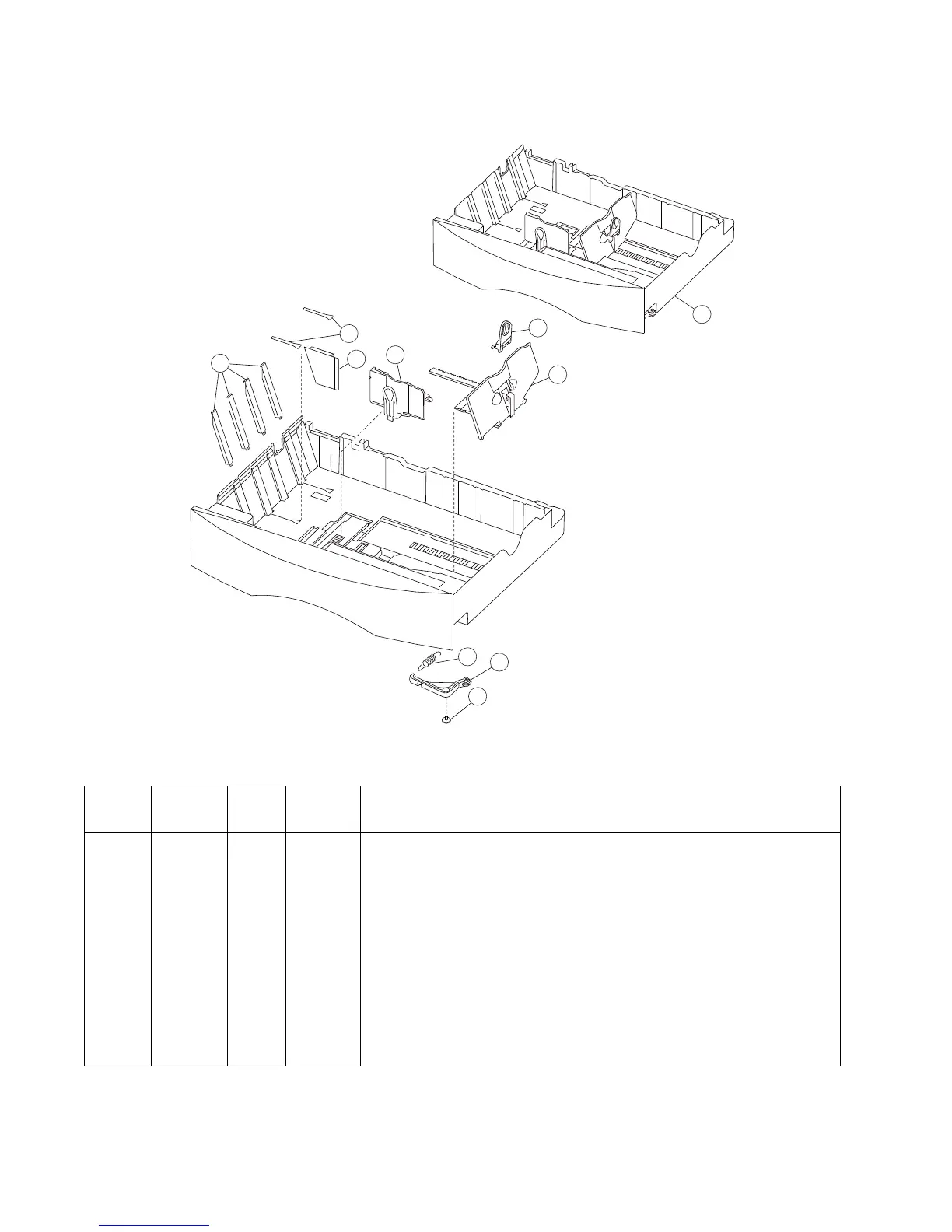

Assembly 13: 500-Sheet integrated tray
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
13–1 40X1728 1 1 500-Sheet tray assembly
2 40X1720 1 1 Back restraint latch
3 40X1719 1 1 Back restraint
4 40X1723 1 1 Tray bias bellcrank assembly
5 1 1 Screw type 312/322/412/423, parts packet, 40X1691
6 40X1725 1 1 Tray bias spring
7 40X1722 4 4 Wear strip
8 40X1885 1 1 Tray wear clip
9 40X1727 2 2 Restraint pad
10 40X1718 1 1 Side restraint
3
7
5
9
2
10
6
4
8
1
