Diagnostic information 2-29
5061
200.04 paper jam service check
S2 sensor late
Note: See “Printer sensors” on page 5-3.
Step Actions and questions Yes No
1 Check the tray for proper edge guide setting and media
loading. Edge guides should be adjusted against edge
of media. Media should be fanned and lay flat in the
tray.
Is the media properly loaded in the tray?
Go to step 2 Properly load
media.
2
Check the pick tires for contamination or wear.
Are pick tires worn or contaminated?
Replace the pick
rolls. See “Pick
rolls removal”
on page 4-70.
Go to step 3
3
Check for obstructions in the paper path.
Is the paper path obstructed?
Clear the
obstruction.
Go to step 4
4
Is the inner deflector out of position? Correct the inner
deflector position.
Go to step 5
5

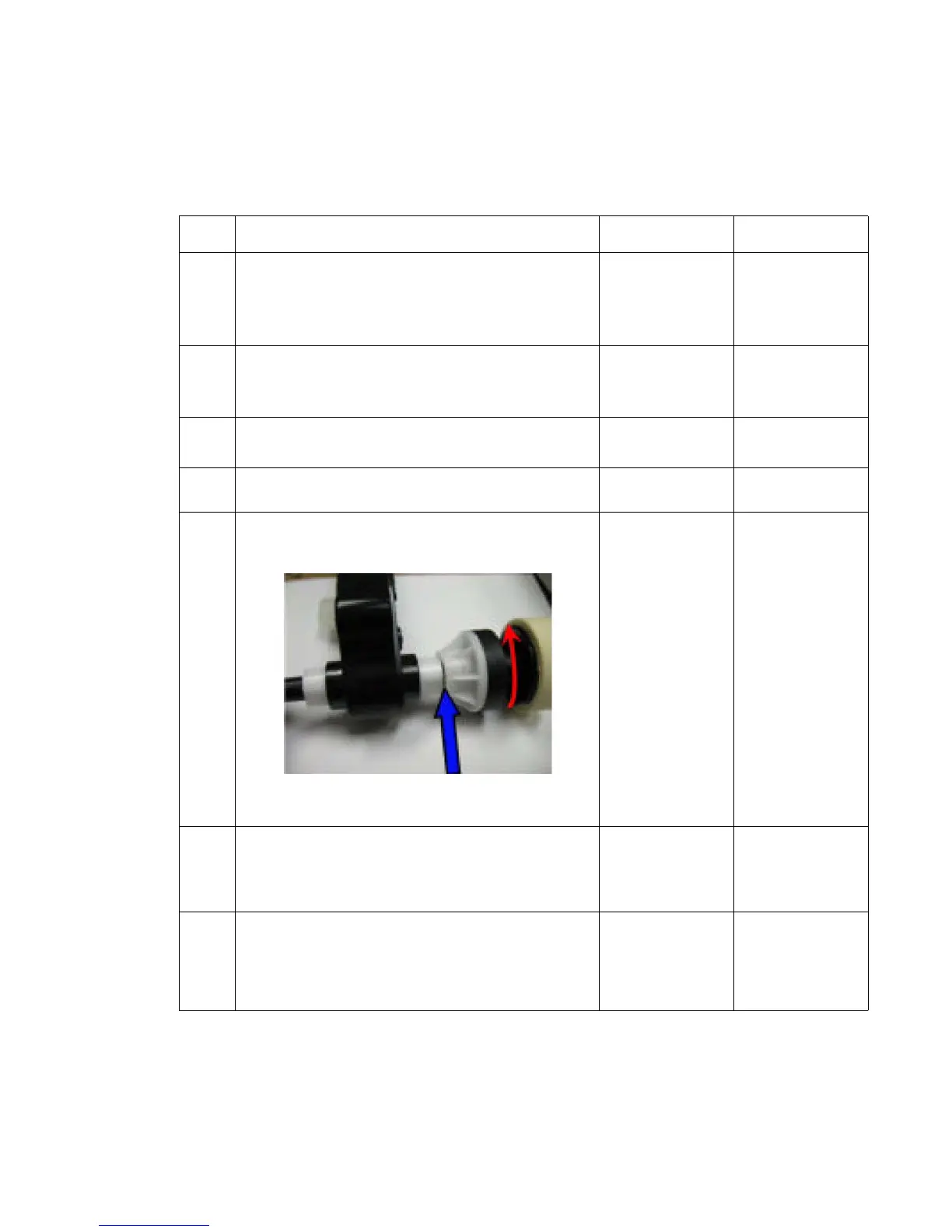

If the pick arm clutch and shaft are not completely
snapped together, the pick arm tires will not rotate
freely in the direction shown.
Is pick arm clutch and shaft completely snapped
together?
Go to step 6 Slide the clutch,
and snap it onto
the shaft.
6
Is the autocompensator damaged or defective? Go to
“Autocompensa
tor service
check” on
page 2-78.
Go to step 7
7
Perform the “BASE SENSOR TEST” on page 3-24 on
the S2 sensor.
Does the S2 sensor pass the test?
Contact your next
level of support.
See “200.21,
200.28, and
200.29 paper
jam service
check” on
page 2-32.
To Next Page
