Parts catalog 7-21
5061

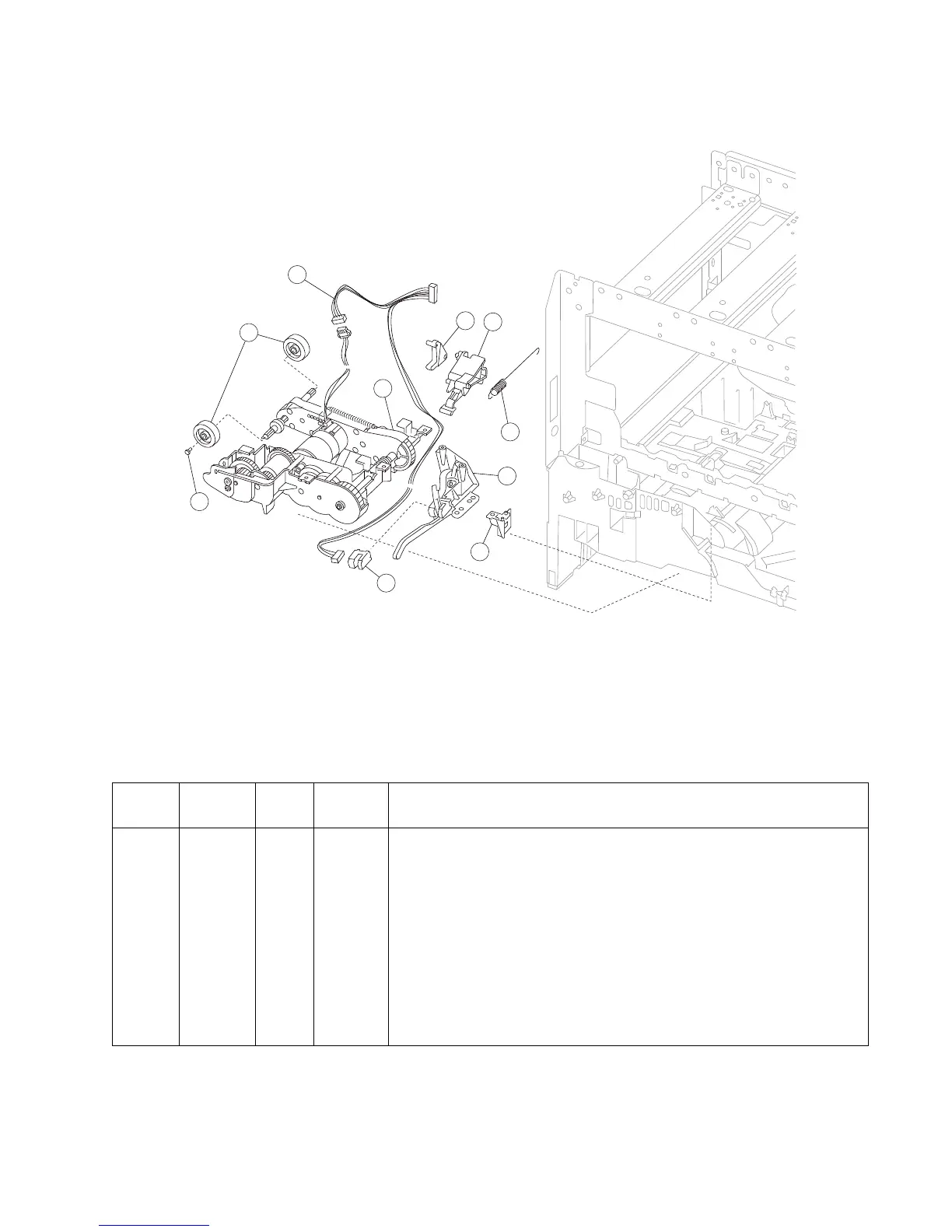

Assembly 14: Autocompensator assembly
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
14–1 40X1730 1 1 Tray interlock bellcrank
2 40X1741 1 1 Pick arm lift bellcrank
3 40X1724 1 1 Pick assembly 500-tray
4 40X1734 1 1 Bellcrank lift spring
5 40X1732 1 1 Paper level sensing assembly
6 40X1731 1 1 Tray interlock bracket
7 40X1729 1 1 Sensor, paper out/low
8 1 1 Screw type 312/322/412/423, parts packet, 40X1691 (pick roll mounting)
9 40X0070 2 2 Pick roll tires (2 per pack)
10 40X1733 1 1 Pick motor extension and paper level sensing cable
3
5
2
4
1
6
7
9
8
10
