4-84 Service Manual
5061

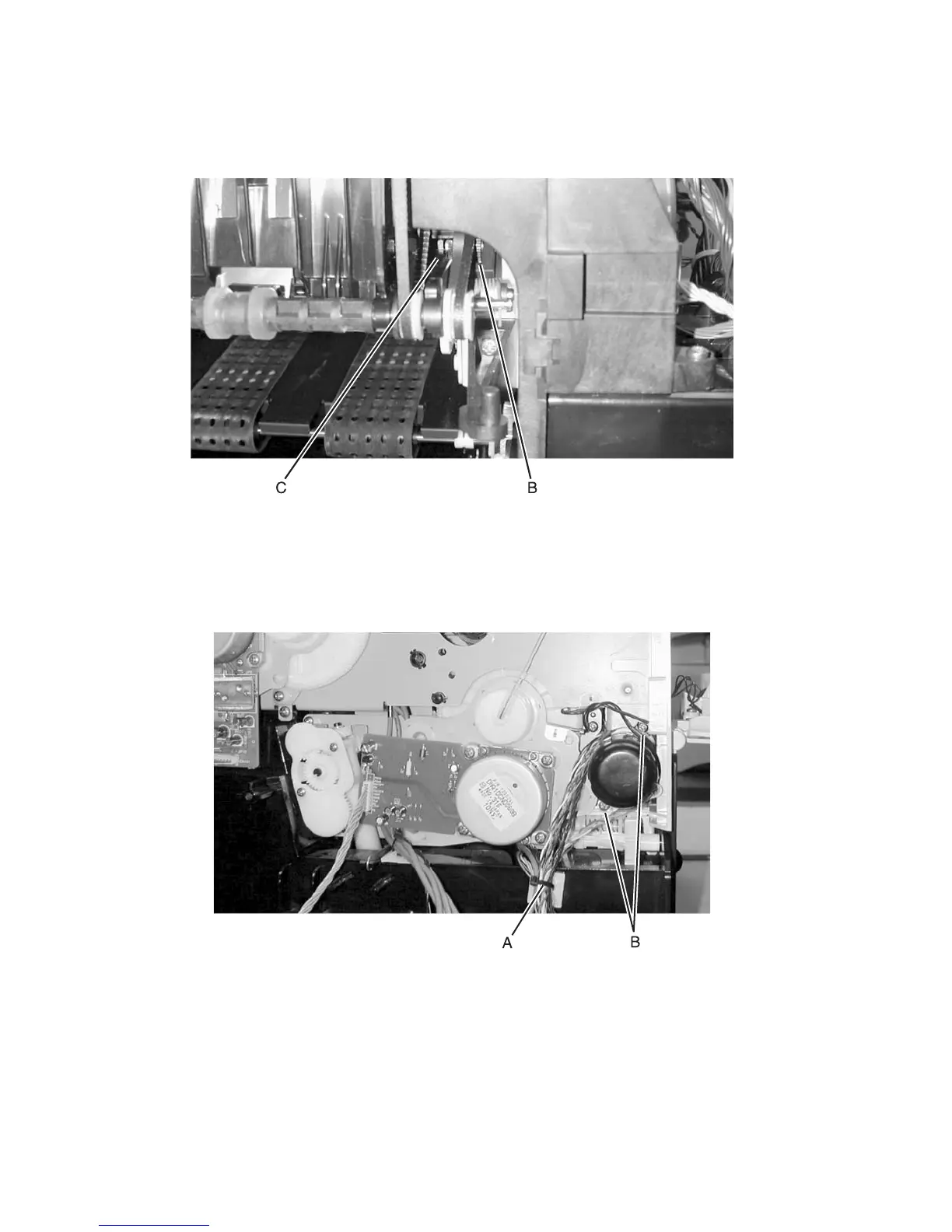

4. Remove the drive belt (B) from the lower redrive pulley.
5. Remove the redrive assembly.
Note: When you reinstall the redrive assembly be sure to align the notch in the redrive assembly with tab (C).
Registration motor removal
See page 7-17 for the part number for the registration motor assembly kit.
1. Remove the inner system board shield. See “Inner system board shield removal” on page 4-48.
2. Remove the registration motor mounting screws (B), cut the cable tie (A), and remove the assembly.
Installation note: Be sure to replace the cable tie (A).
