Lexmark C78x User Manual

Repair information 4-87
5061
RIP fan removal
See “RIP fan, 92 mm” on page 7-35 for the part number.
1. Remove the rear cover. See “Rear cover removal” on page 4-22.
2. Disconnect the rip fan cable from the system board at connector J3.

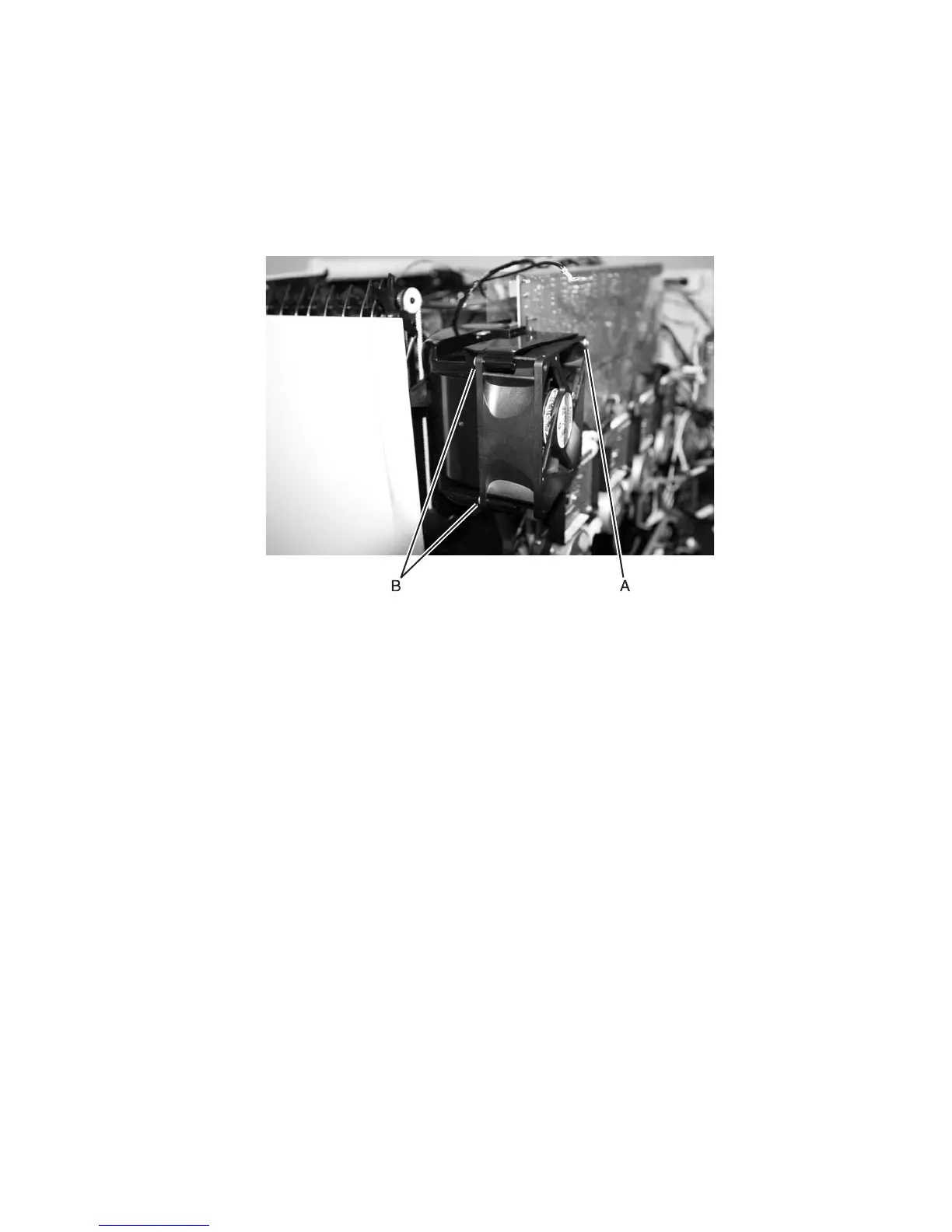

3. Remove the front rip fan screw (A).
4. Remove the two rip fan rear screws (B).
5. Remove the rip fan.
