7-14 Service Manual

5061

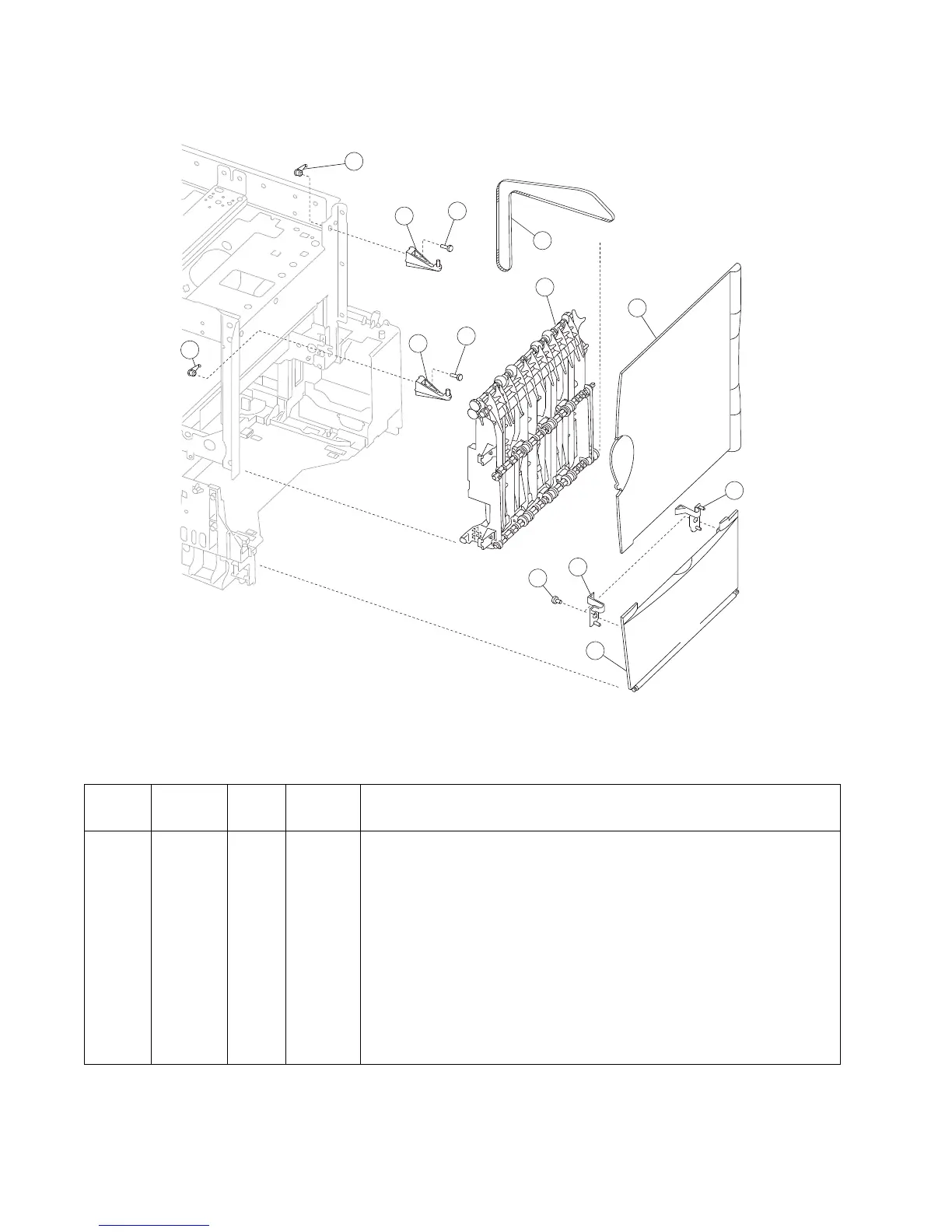

Assembly 8: Paper feed output (redrive)

Asm-

Index

Part

number

Units/

mach

Units/

FRU

Description

8–1 40X1686 8 2 Bracket mounting anchor (2 per package)

2 40X1685 2 2 Upper door hinge

3 2 2 Screw type 312/322/412/423, parts packet, (40X1691)

4 40X1689 1 1 Redrive belt 300 T

5 40X1684 1 1 Redrive assembly

6 40X1690 1 1 Redrive door assembly

7 40X1687 1 1 Lower right door latch

8 40X1688 1 1 Lower left door latch

9 2 2 Screw type 324, parts packet (40X1635)

10 40X1634 1 1 Lower right door assembly
