4-96 Service Manual
5061
Vacuum transport belt (VTB) removal
See “Vacuum transport belt assembly” on page 7-11 for the part number.
1. Remove the transfer plate assembly. See “Transfer plate assembly removal” on page 4-95.
2. Remove the fuser bottom duct. See “Fuser bottom duct removal” on page 4-46.

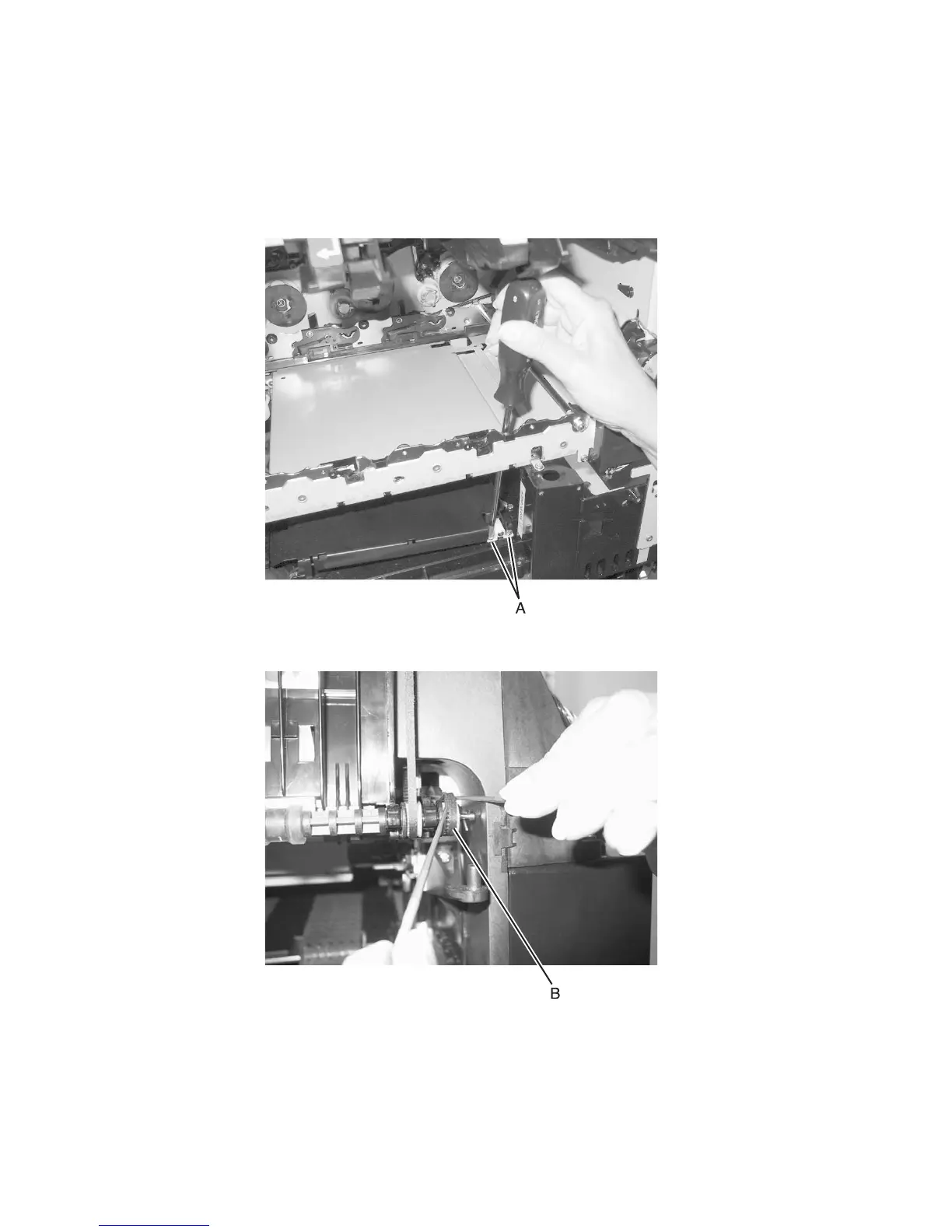

3. Remove the two front screws (A).
4. Loosen belt (B) on redrive assembly, and remove from redrive gear.
5. Remove belt from gear on vacuum belt transfer unit.
