4-100 Service Manual
5061

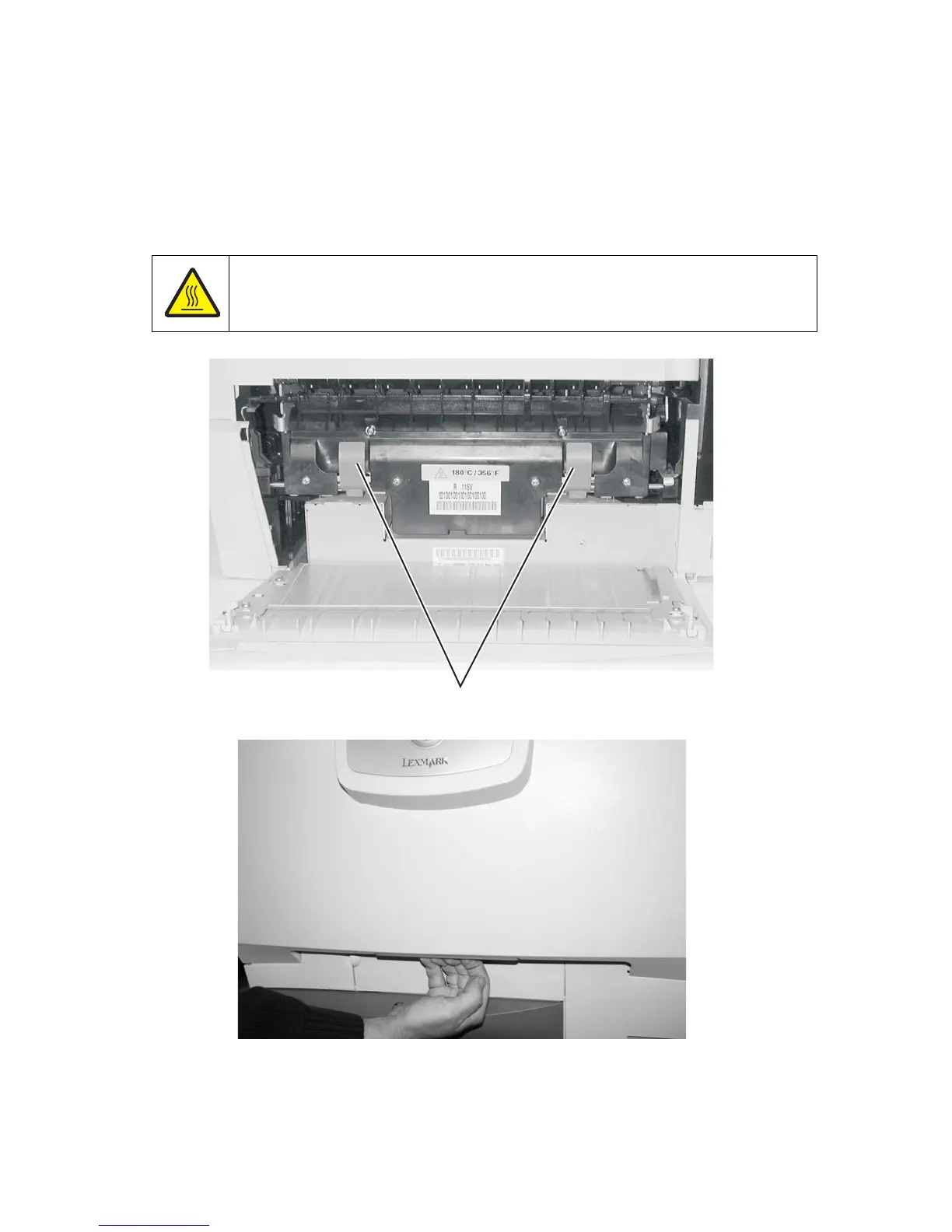

Web oiler fuser assembly and card removal and replacement
See “Fuser assembly” on page 7-7 for the part number.
1. Turn the printer off.
2. Open the fuser access cover.
3. Unlatch the two fuser latches (A).
4. Remove the fuser assembly.
5. Open the front cover assembly.
6. Remove the yellow print cartridge.
7. Remove the front light shield. See “Front right light shield removal” on page 4-42.
8. Remove the front lower right cover. See “Front lower right cover removal” on page 4-19.
CAUTION
The fuser may be hot. To avoid a burn injury, allow the fuser to cool to room temperature
before removing.
To Next Page
