Lexmark C78x - Fuser Bottom Duct Removal; Fuser Drive Assembly Removal

4-46 Service Manual
5061
Fuser bottom duct removal
See “Fuser bottom duct” on page 7-5 for the part number.
1. Remove the fuser assembly. See “Fuser assembly removal” on page 4-44.
2. Remove the fuser top duct. See “Fuser top duct removal” on page 4-47.

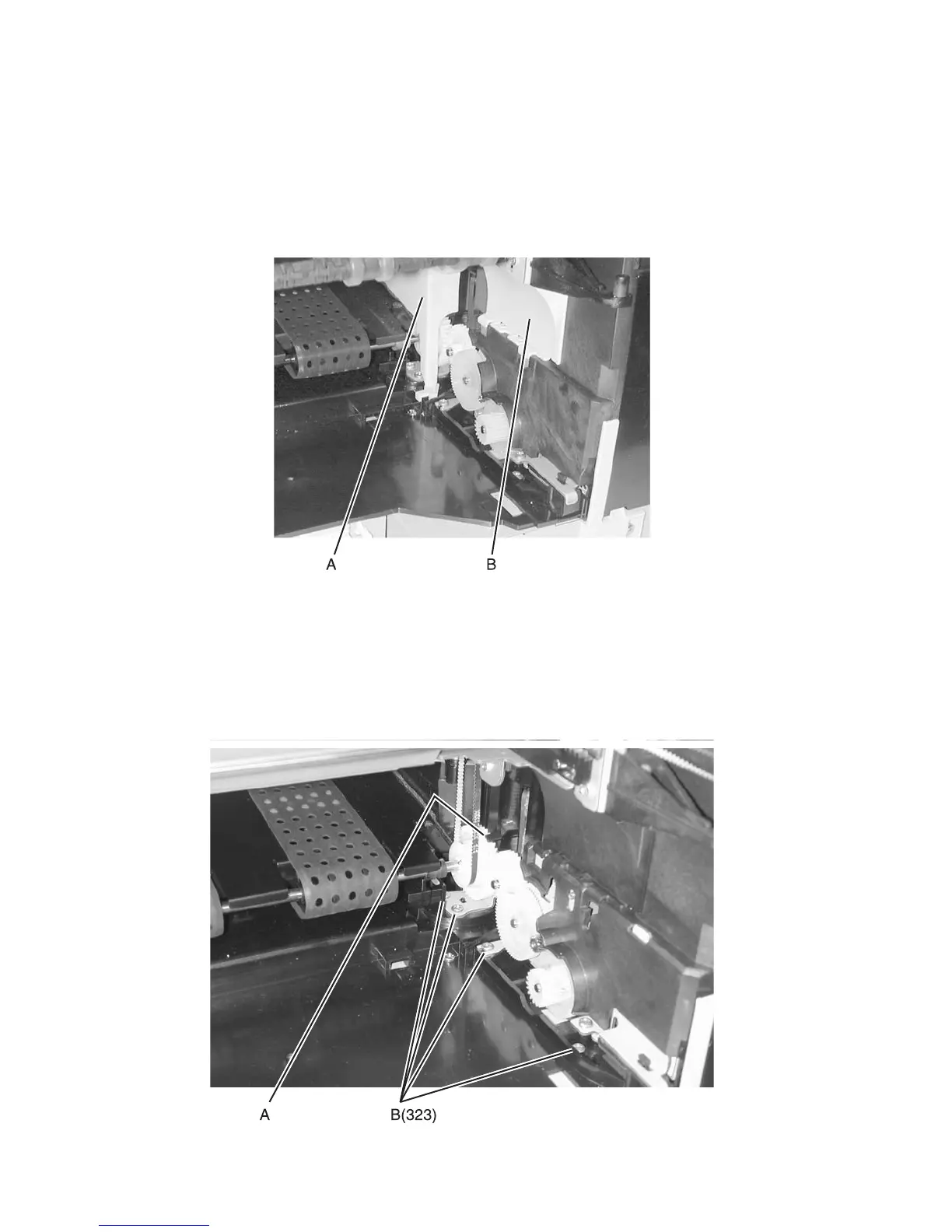

3. Remove the redrive belt cover duct (A).
4. Remove fuser left duct (B).
5. Remove fuser bottom duct.
Fuser drive assembly removal
See “Fuser drive assembly” on page 7-10 for the part number.
1. Remove the fuser bottom duct. See “Fuser bottom duct removal” on page 4-46.
2. Swing lever (A), and disengage VTB shaft. See “Vacuum transport belt (VTB) removal” on page 4-96.
3. Remove the fuser drive assembly screws (B) type “323” on page 4-3, and remove the assembly.
