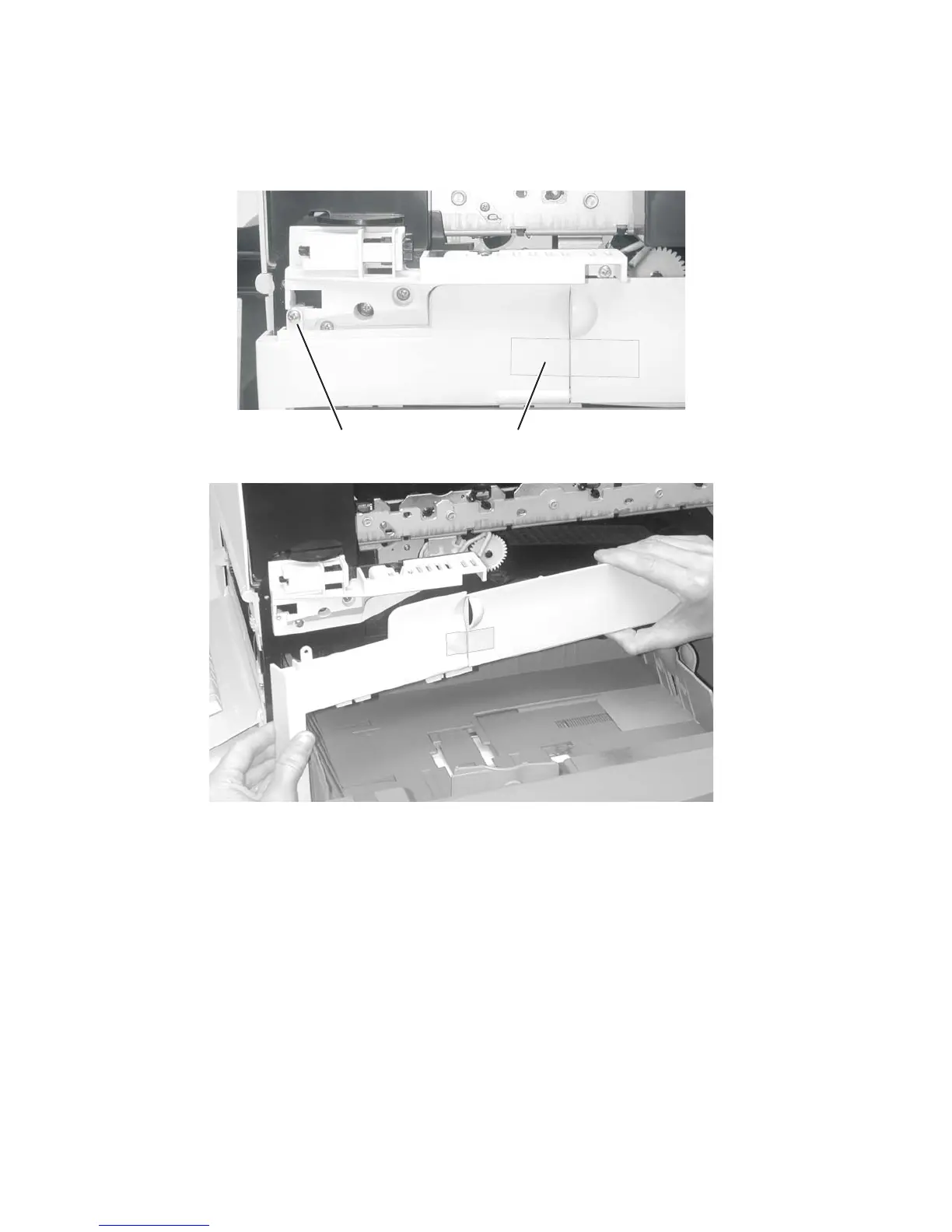

4. Tape front jam access door (C), to help hold the door in place.
The spring loaded door is difficult to reassemble. Avoid disassembly of the door, unless you need to
replace the paper path access door.
5. Remove the screw (D) in the front left handle cover assembly.
6. Remove the front lower left cover with the paper path door attached.
Paper path access door removal
See “Paper path access door” on page 7-3 for the part numbers.
1. Remove the front lower left cover. See “Front lower left cover removal” on page 4-17.
2. Separate the paper path access door cover and the front lower left cover.
Note: Do not lose the spring.
