Parts catalog 7-17

5061

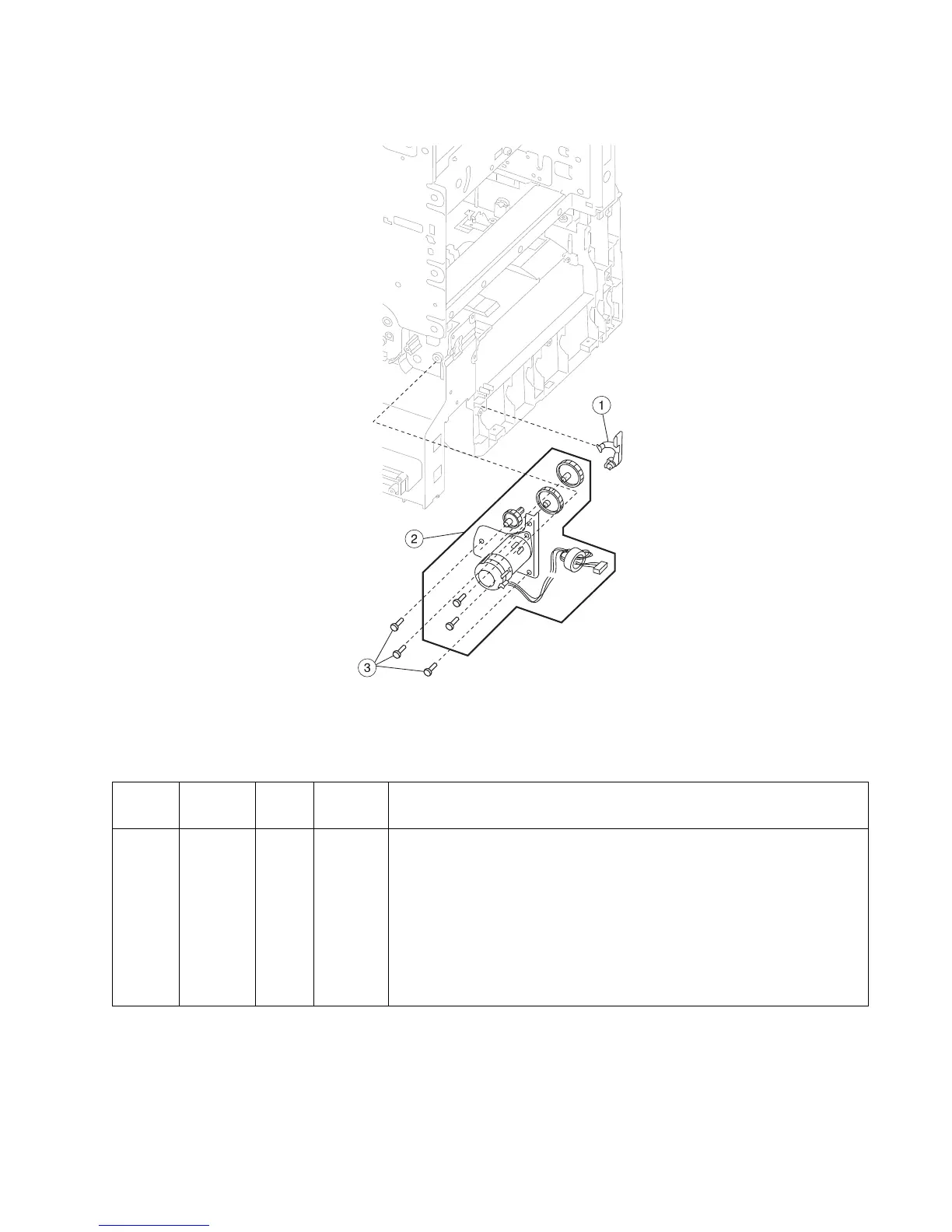

Assembly 11: Paper feed transport

Asm-

Index

Part

number

Units/

mach

Units/

FRU

Description

11–1 40X1701 1 1 Nip relief handle

Also order cable tie parts packet (P/N 40X1648)

2 40X1702 1 1 Registration motor assembly kit, including:

(also order cable tie parts packet, P/N 40X1648)

- Staging motor assembly

- Gear, reference plate

- Gear, staging idler

- Gear, staging reduction

- Motor screws

3 3 3 Screw type 323, parts packet, 40X1633
