Lexmark C78x - Page 248

4-16 Service Manual
5061
Installation notes
Note: Replace all cable ties.
Warnings:

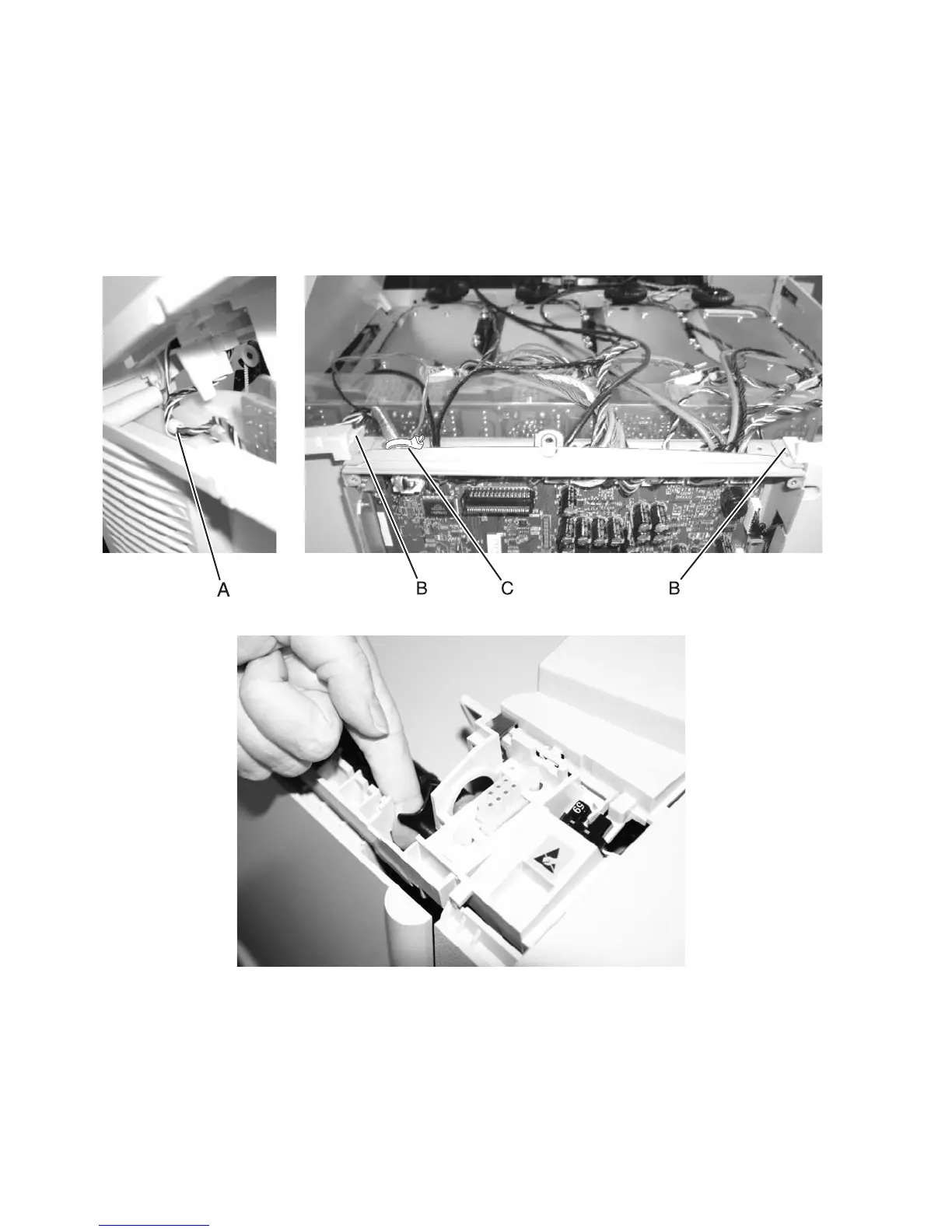

• Be sure the cables are in the cable retainer (A).
• Be sure the cables are not pinched by the top cover ribs against the indicated surfaces (B) of the printer
frame.
• Be sure to replace the cable tie (C).
• Place the cover carefully over the upper redrive diverter to avoid damage.
