Repair information 4-15
5061

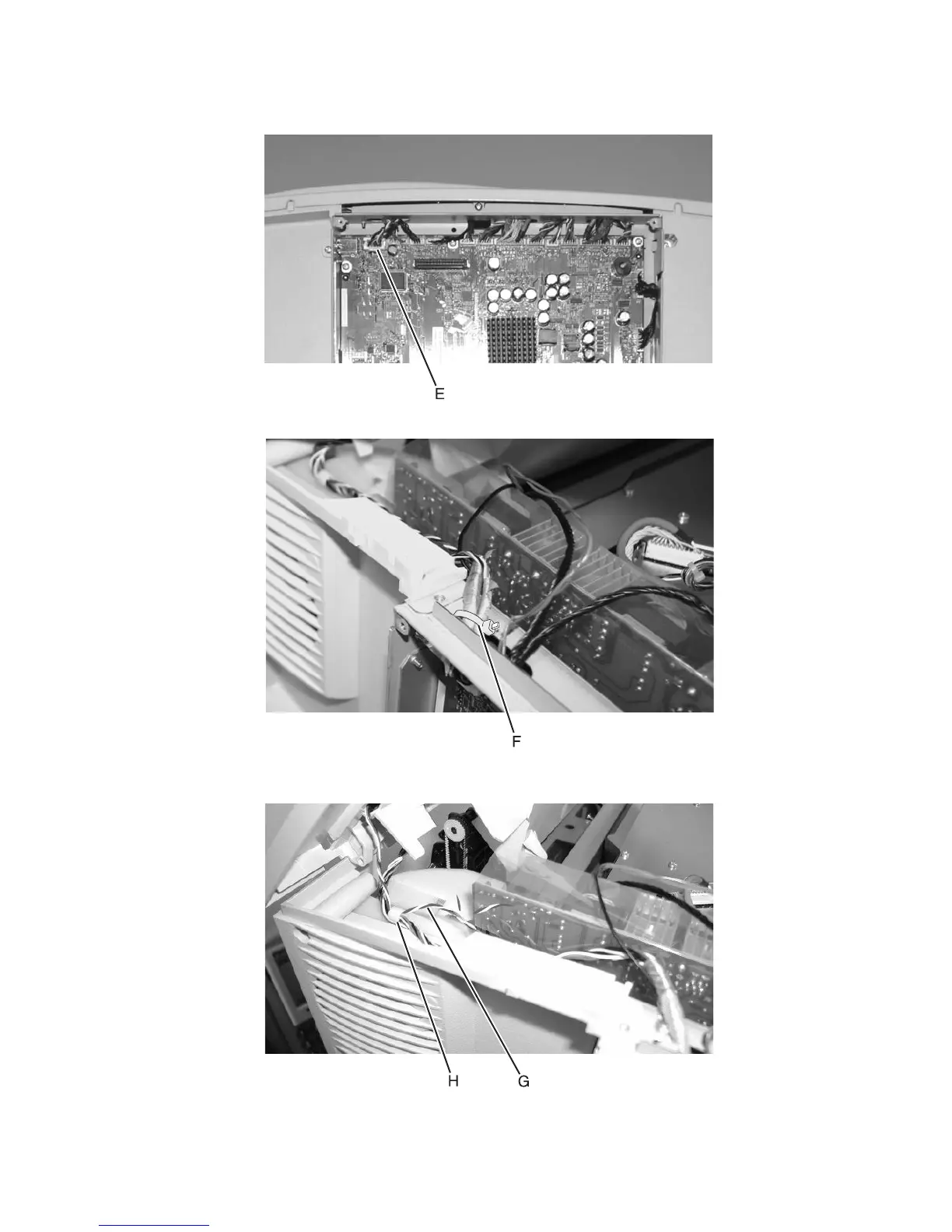

9. Disconnect the cable from J2 (E) on the system board.
10. Lift the top cover, and clip and remove the cable tie (F).
11. Pull the cable through the inner system board shield.
12. Remove the autoconnect cable (G) from the cable retainer (H).
13. Remove the top cover.
