Repair information 4-57
5061
Replacing the media size sensing assembly
Installation note: Be sure to replace all cable ties.

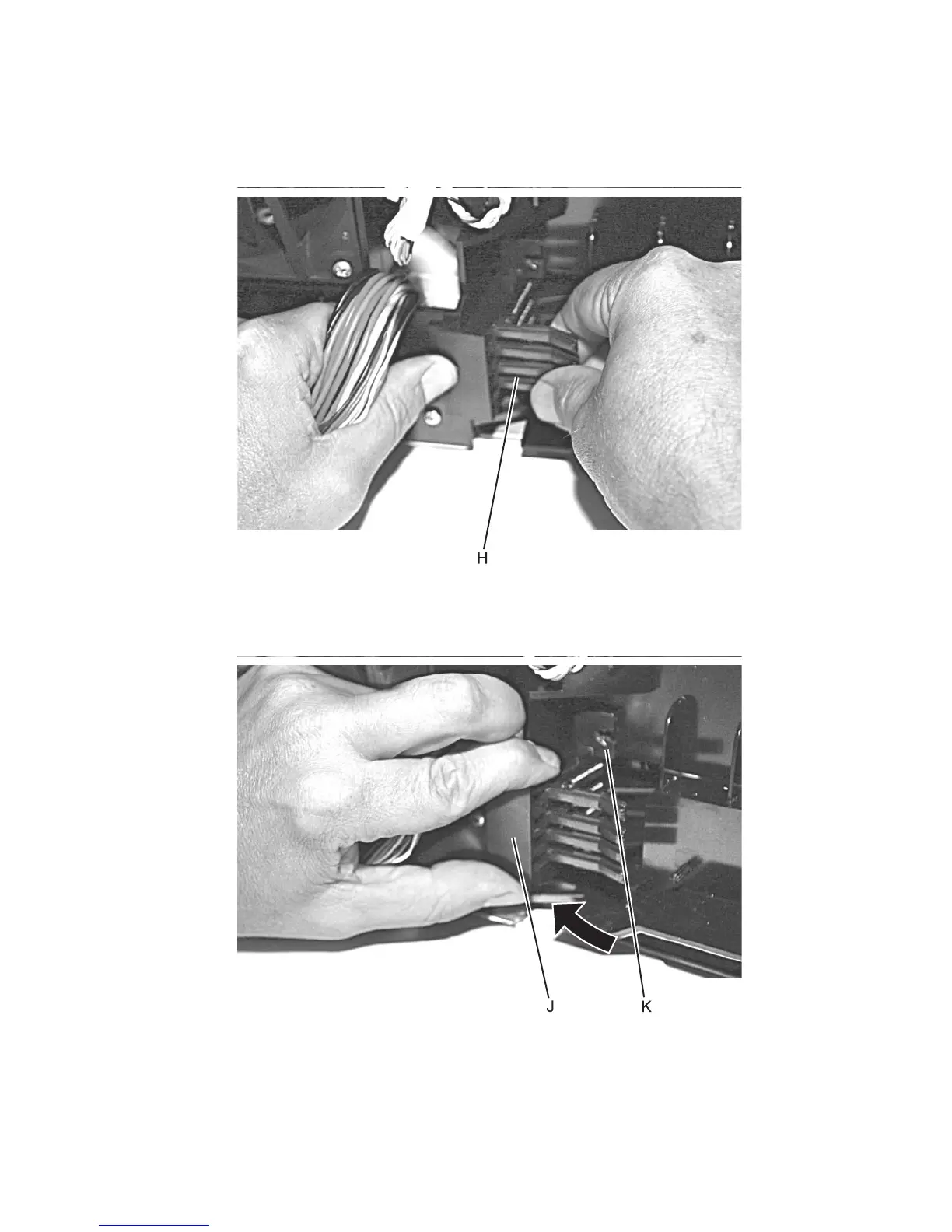

1. Press on the back of the media size sensing assembly fingers (H).
2. Move the assembly down to the bottom of the aligning hole. Be careful with the exposed fingers. Do not
allow them to press against the black plastic frame.
3. Gently wiggle the entire assembly, and press in and around the corner to the right.
4. Grasp the rectangular piece (J) of the media size sensing assembly and move up and to the left until the
screw hole (K) lines up.
5. Reinstall the ground screw, inner system board shield, waste toner container, outer system board shield,
and the covers.
