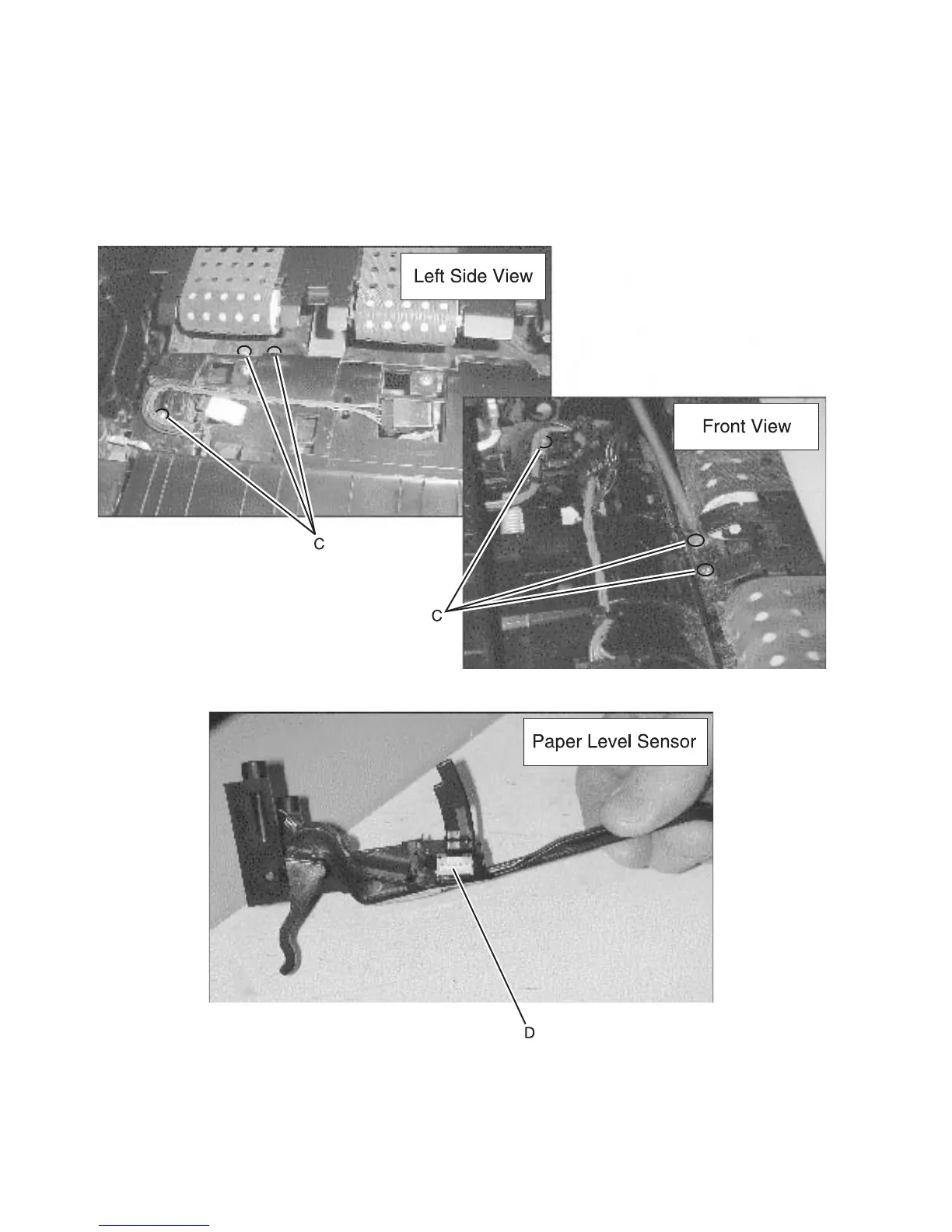

5. Remove the paper level sensor.
a. Remove the three screws (C). Two screws are located under the back VTB belt. The third screw is
located at the rear pivot point for the transfer plate.
This allows the paper level assembly to drop into the integrated paper drawer.
b. Disconnect the cable from the connector (D) on the paper level sensor.
c. Pull the paper lever sensor cable up through the opening.
d. Remove the paper level sensor assembly.
