Lexmark C78x User Manual

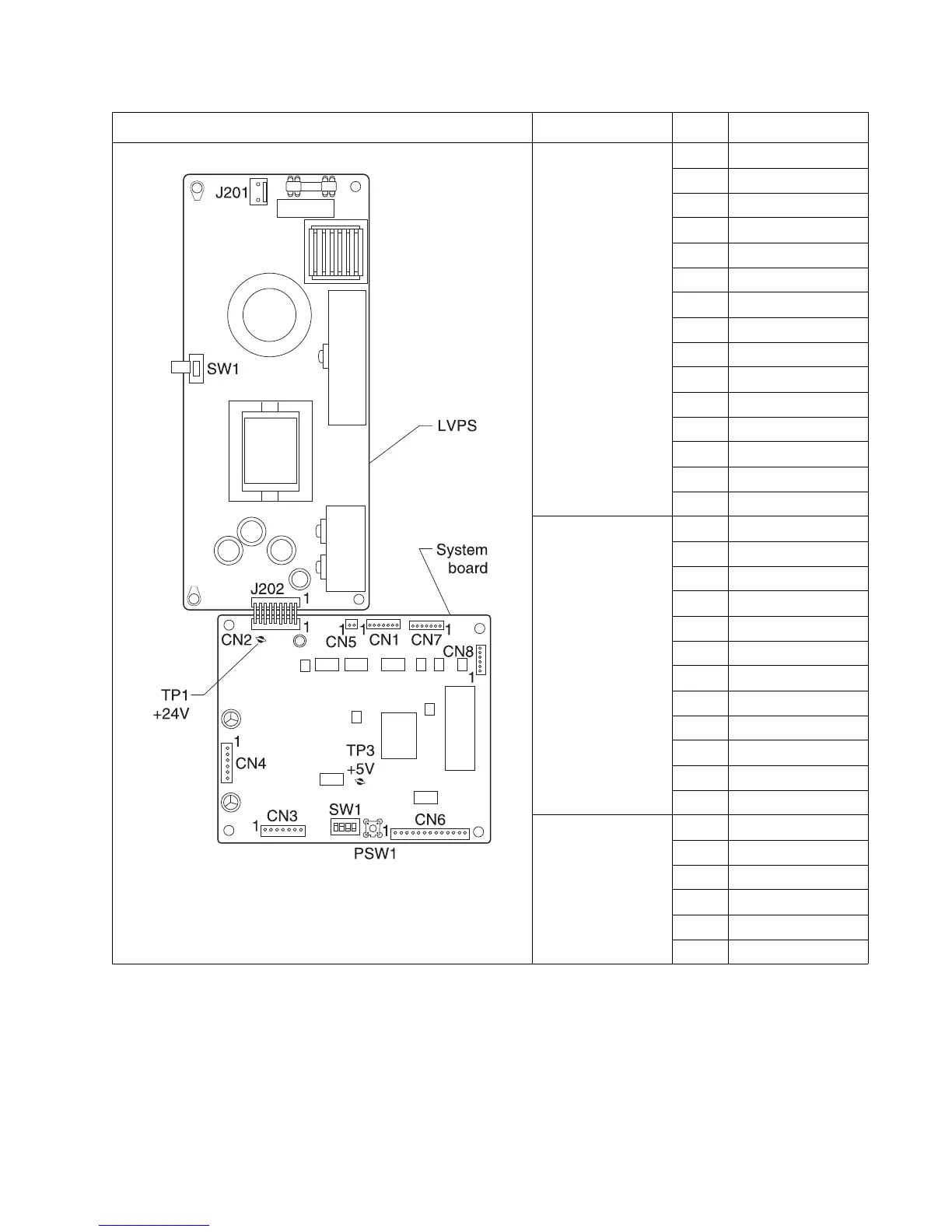

Connector locations 5-27
5061
CN6 Sensors
Side Door/Level/
Empty/
Registration
Home/Pick Home
1+5 V dc
2GND
3SIDE
4+5 V dc
5GND
6 LEVEL
7+5 V dc
8GND
9EMPTY
10 +5 V dc
11 GND
12 RHOME
13 +5 V dc
14 GND
15 PHOME
CN7 Size
Sensors/Near
Empty
1+5 V dc
2GND
3SIZE 0
4+5 V dc
5GND
6SIZE 1
7+5 V dc
8GND
9SIZE 2
10 +5 V dc
11 GND
12 NE EMP
CN8
S1(Pick Sensor)
S2(Registration
Sensor)
1+5 V dc
2S2
3GND
4+5 V dc
5S1
6GND
Connector Pin Signal
