Repair information 4-103
5061
Installation notes:

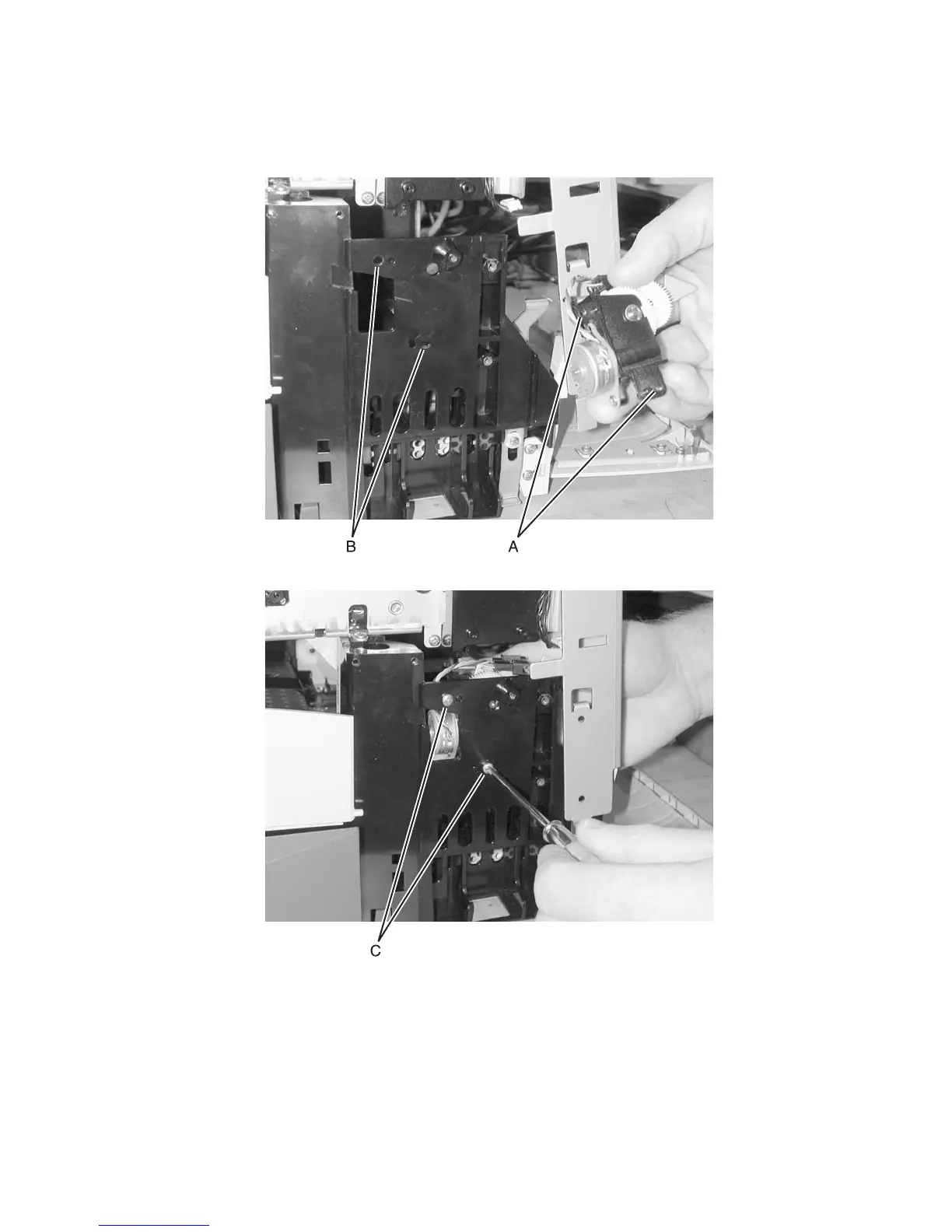

1. Use the alignment pins (A) on the web oiler fuser motor assembly to position the assembly in holes (B),
and install the assembly.
2. Secure the web oiler motor assembly with screws (C).
3. Install the web oiler card using screws.
4. Plug web oiler cable (D) into web oiler card connector.
Note: Make sure the cables from the drive assembly are routed along the lower frame and are not in
contact with the drive assembly gears.
