Lexmark C78x - Page 337

Repair information 4-105
5061

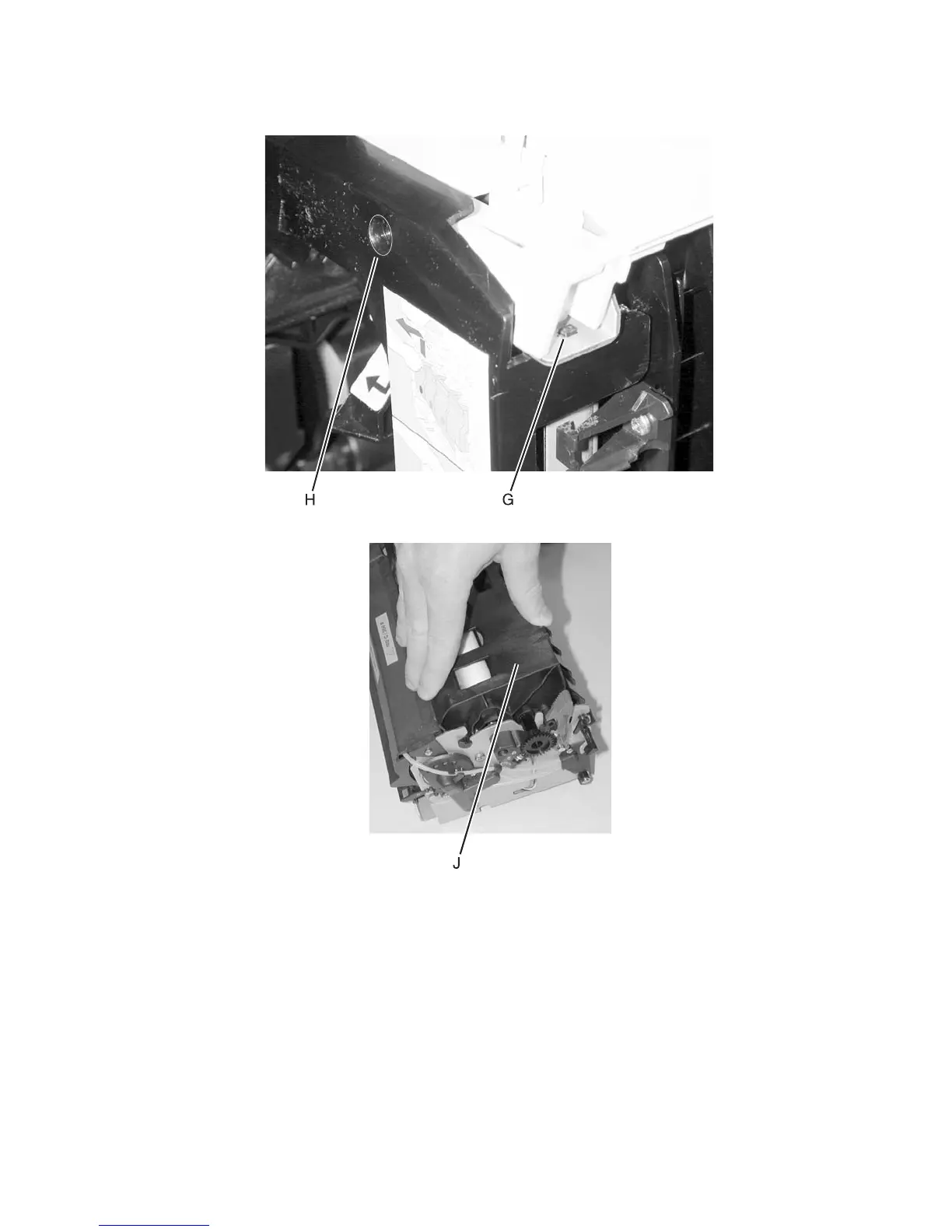

8. Move the front right light shield up until alignment stud (G) and the screw hole (H) are aligned.
9. Attach the new web oiler fuser housing (J) to new web oiler fuser.
10. Insert the web oiler fuser assembly into the fuser assembly, and install the fuser assembly into the printer.
