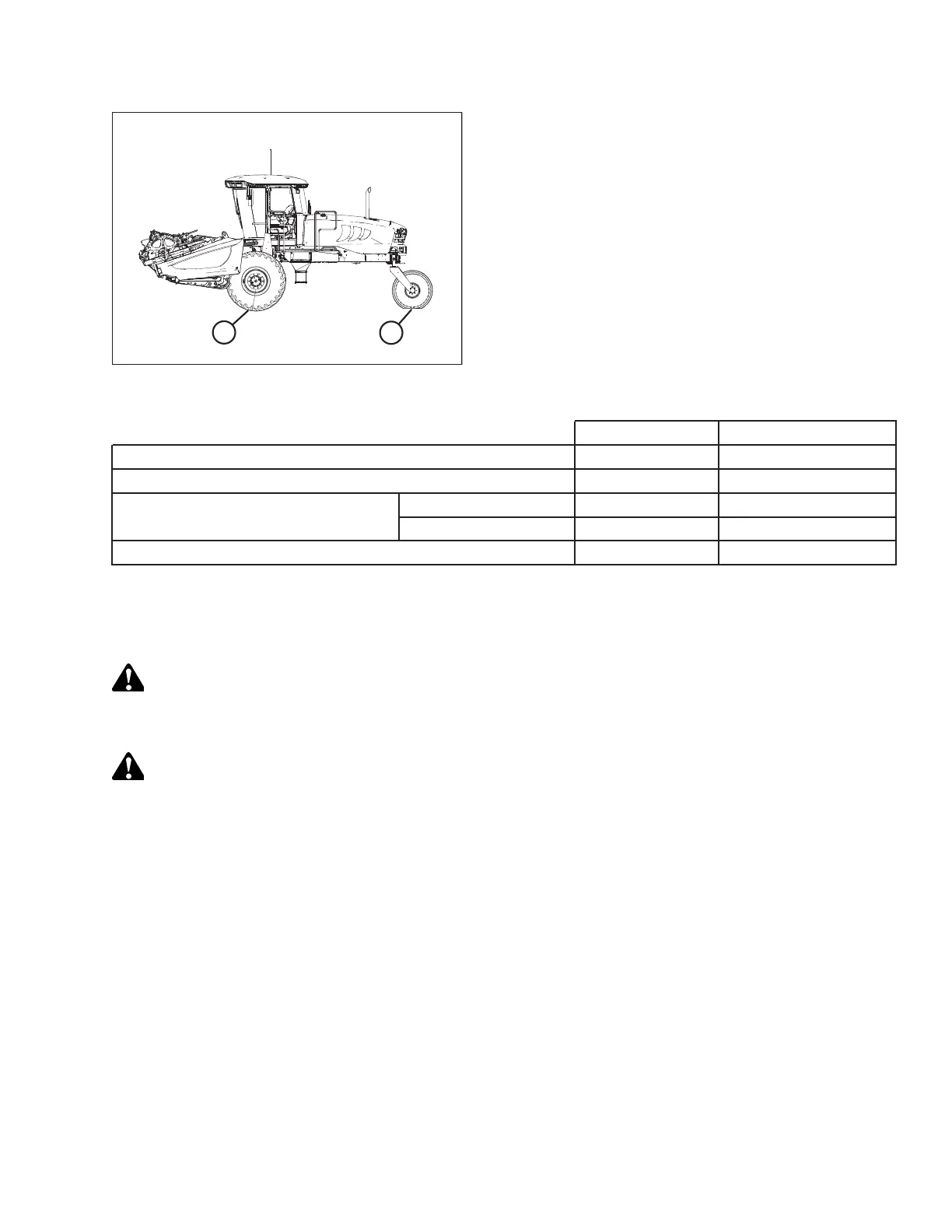

Figure 4.38: M Series Windrower
Table 4.2 Maximum Weight
kg lb.
Maximum GVW (includes mounted implements)
9750
21,500
Maximum CGVW (includes towed and mounted implements)
10,480 23,100
Weight (A) on both drive wheels
Maximum
8500
18,750
Minimum
4570
10,070
Maximum weight (B) on both caster tires
2750 6050
Converting Windrower from Field to Transport Mode
To tow a header equipped with the slow speed transport option, the windrower must be converted from field to transport
mode. A weight box will be needed to ensure that the windrower remains balanced.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
DANGER
To prevent bodily injury from the fall of a raised header, always engage the safety props when working on or around a
raised header, and before going under the header for any reason.
1. Lower the header.
2. Disconnect the following hydraulic and electrical connections:
a. Left side: Arrange the hydraulic hoses and electrical cable into the storage position. For instructions, refer to the
header operator’s manual.
b. Right side: Release the multi-link and place it into the storage position on the windrower. For instructions, refer to
the header operator’s manual.
