215676 180 Revision A

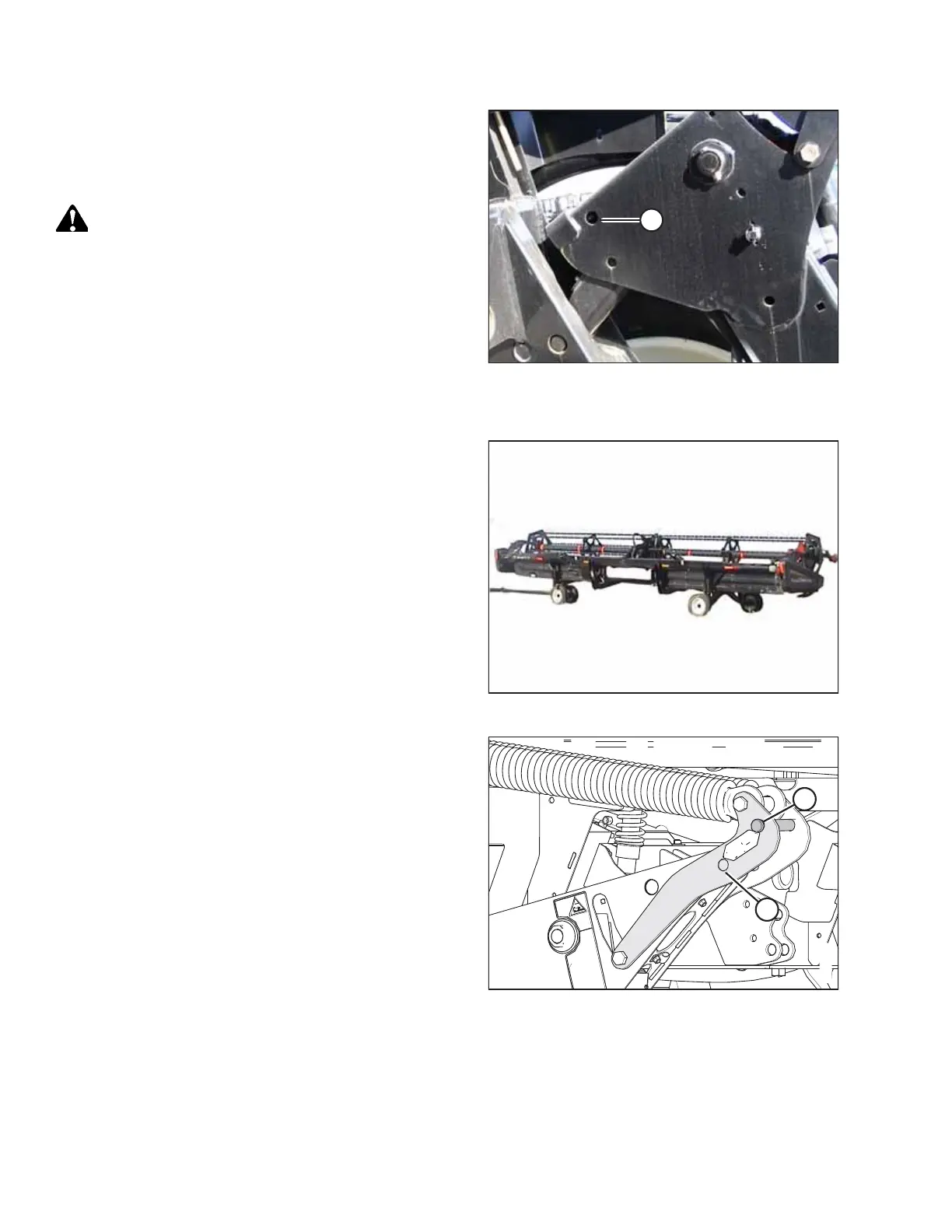

Figure 4.39: Lift Arms
3. Retrieve the temporary lift pin from its storage location on
the weight box and install it into rear hole (A) at the top of
the lift arms. This provides additional lift height so that the
transport wheels can easily be deployed.
DANGER
Ensure that all bystanders have cleared the area.
4. Start the engine.
5. Raise the header to its maximum height.
6. Stop the engine, and remove the key from the ignition.
7. Engage the safety props on the windrower’s lift cylinders.
Refer to 4.4.1 Engaging and Disengaging Header Safety
Props, page 192 for instructions.
Figure 4.40: Header in Transport Mode
8. Deploy the header’s slow speed transport system. For
instructions, refer to the header operator’s manual.
Figure 4.41: Lift Arms
9. Remove the float pin from engaged position (A) and insert
it in storage location (B). Secure the pin with a lynch pin.
OPERATION
