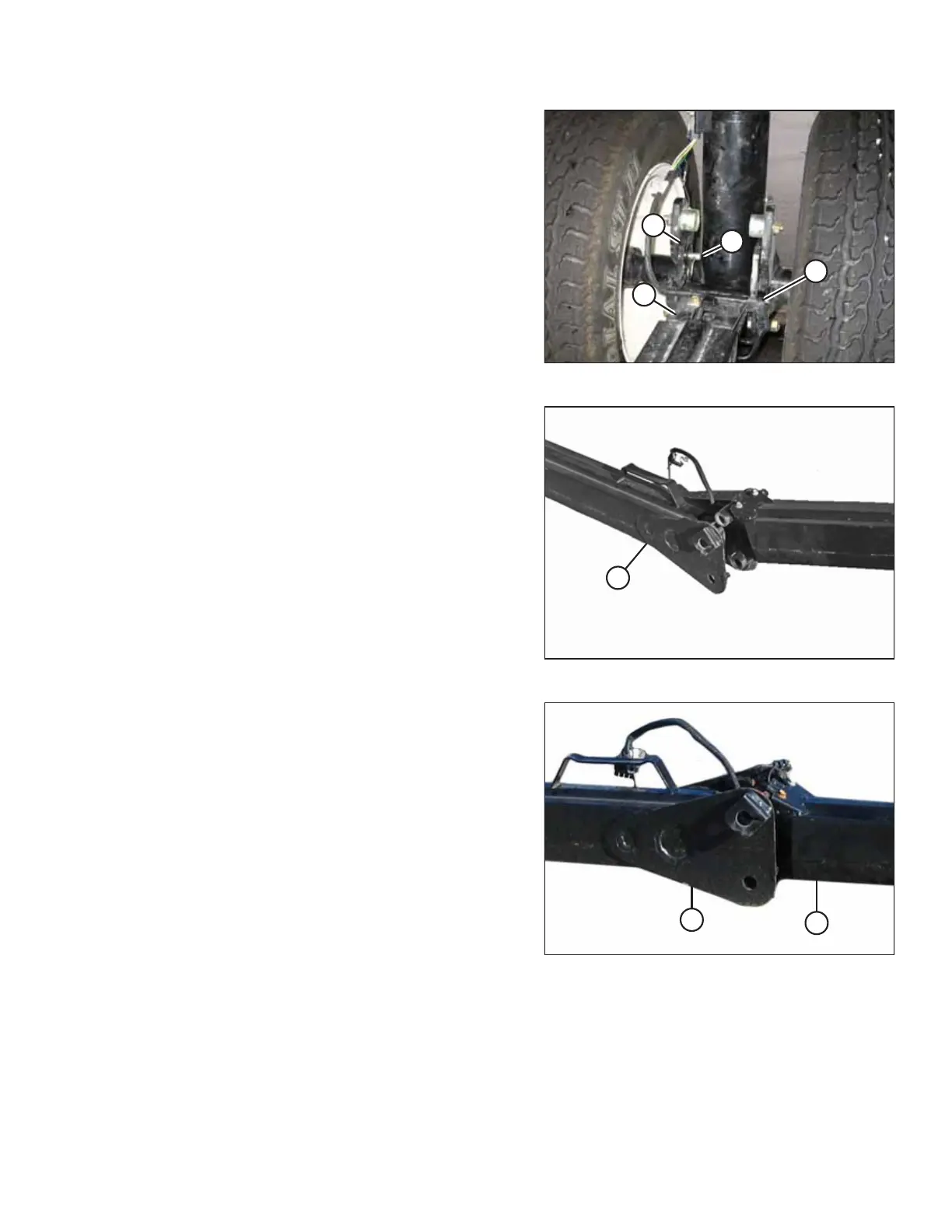

Figure 4.53: Transport Hitch
1. Position end (A) of the aft section onto front wheel
hook (B).
2. Push down until latch (C) captures end (A).
3. Secure latch (C) with clevis pin (D).
1026923
A
Figure 4.54: Transport Hitch
4. Remove the L-pin from end (A) of the aft section
(if installed).
1000714
A
B
Figure 4.55: Transport Hitch
5. Position end (B) of the forward section into end (A) of the
aft section. Lower the forward section into the aft section.
