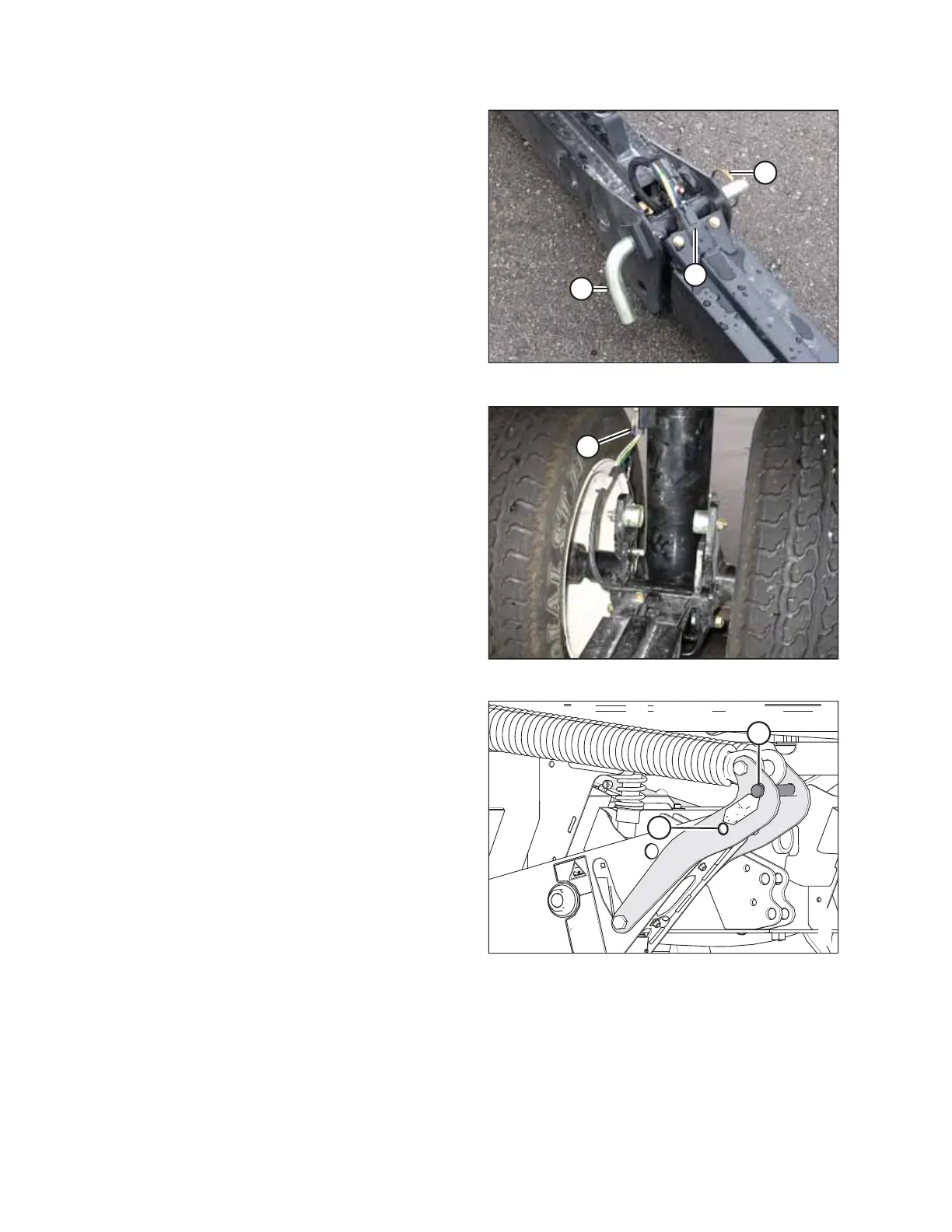

Figure 4.56: Transport Hitch
6. Fully insert L-pin (A) in the upper hole and turn the pin to
lock it. Secure the pin with lynch pin (B).
7. Complete the electrical connection at joint (C).
Figure 4.57: Header Transport Wheel
8. Complete the electrical connection at header wheel (A).
Figure 4.58: Lift Linkage
IMPORTANT:
To prevent damage to the lift system when lowering the lift
linkages without a header or weight box attached to the
windrower, ensure that the float engagement pin is
installed in storage location (B) and is NOT installed in
hole (A).
