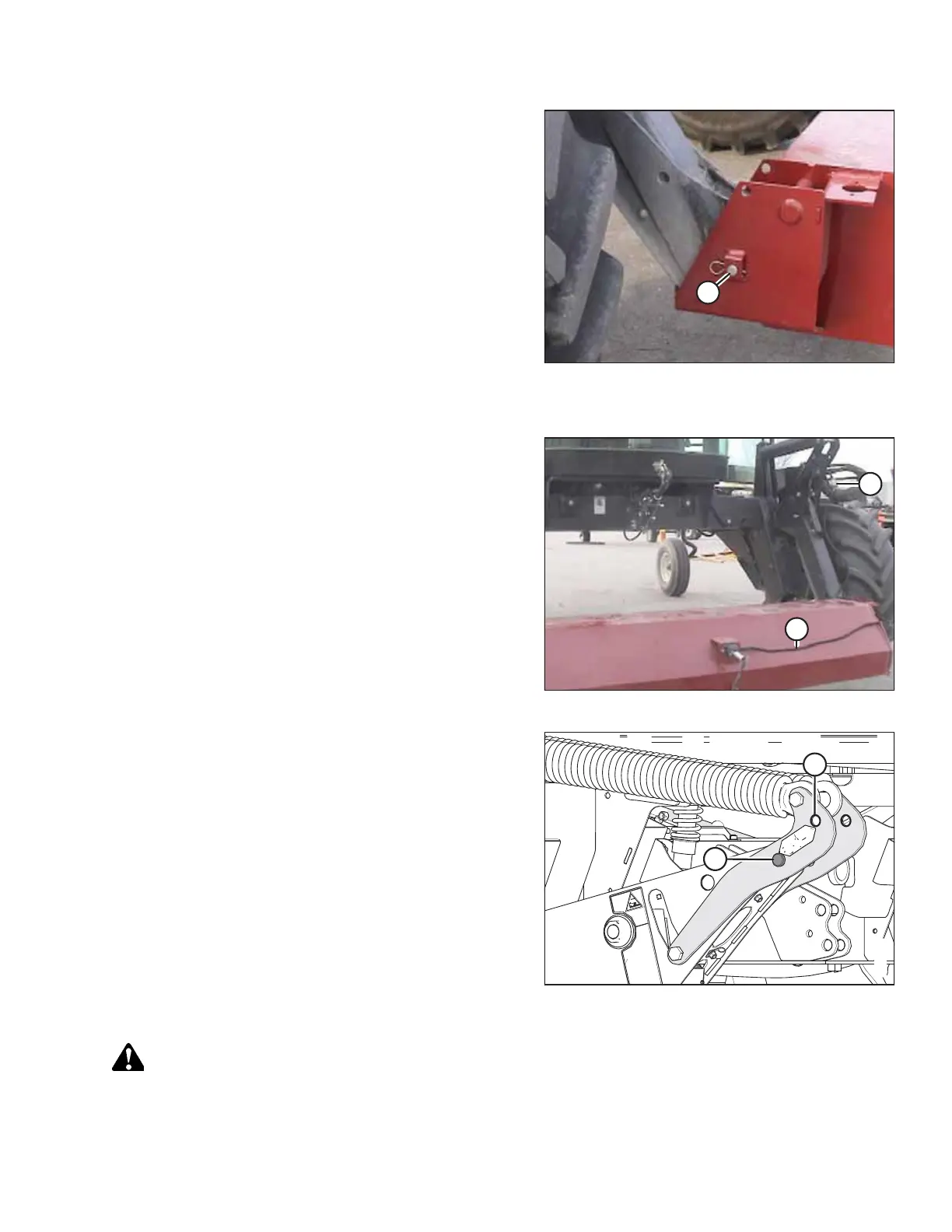

Figure 4.59: Windrower Lift Linkage
9. Drive the windrower forward so that the windrower’ s lift
arms enter into the weight box’s lift pockets.
10. Raise the lift arms slightly. Install locking pins (A) into the
pockets through the windrower’s lift linkages. Secure the
locking pins with hairpins.
NOTE:
Pins (A) were previously removed from the header lift
linkage’s lower ends.
1000719
A
B
Figure 4.60: Weight Box
11. Route weight box harness (A) to the electrical connector on
the left lift linkage. Connect the harness to connector (B) on
the windrower.
12. Raise the lift arms fully.
13. Shut down the engine, and remove the key from the
ignition.
1008705
A
B
Figure 4.61: Lift Linkage
14. Move the float pins from storage location (A) to engaged
position (B).
DANGER
Ensure that all bystanders have cleared the area.
