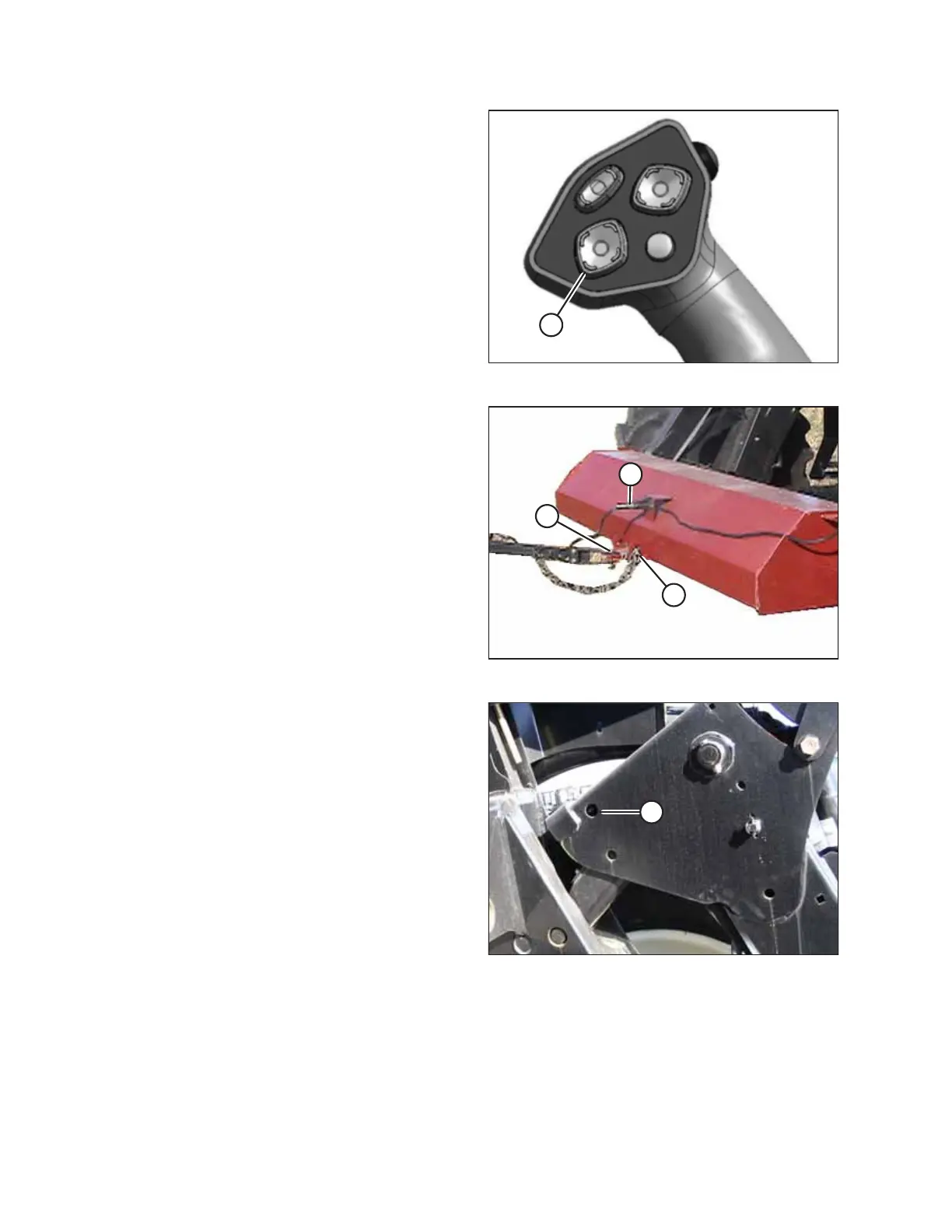

Figure 4.62: GSL
15. Start the engine.
16. Press HEADER DOWN switch (A) on the ground speed lever
(GSL) to lower the lift arms until the rear of the arms lift
away from the linkage.
Figure 4.63: Weight Box
17. Attach the slow speed transport hitch to the weight box
tongue using the drawbar pin. Secure the hitch using lynch
pin (A). Attach safety chain (B).
18. Connect hitch harness (C) to the electrical socket at the
front of the weight box.
Figure 4.64: Lift Arms
19. Remove temporary lift pins (A) (these should be sitting
loose in the lift arms) and place them into the storage holes
on the weight box.
