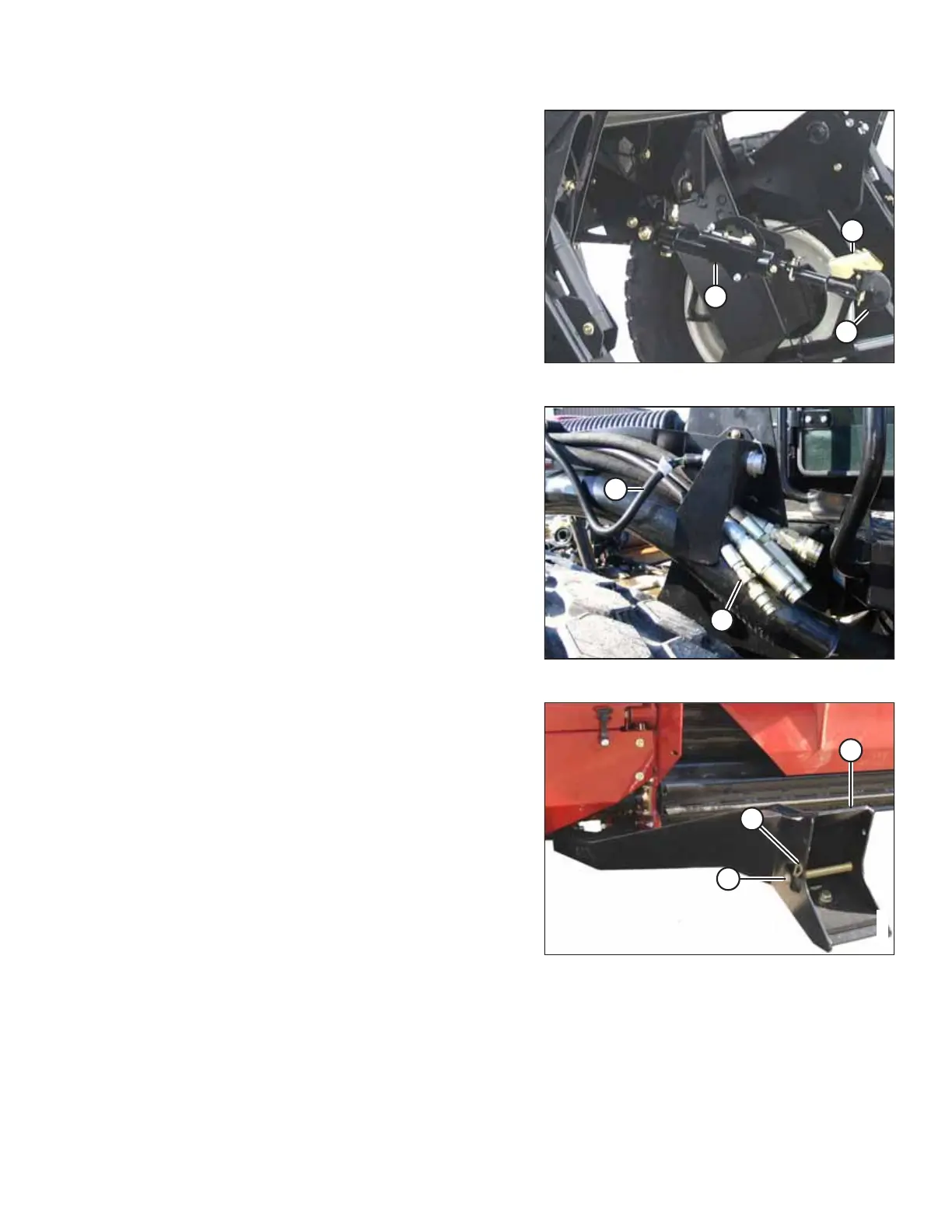

Figure 4.277: Hydraulic Center-Link
10. Shut down the engine, and remove the key from the
ignition.
11. Lift hook release (C) and lift hook (B) off the header pin.
NOTE:
If the optional center-link lift cylinder is installed, lift
release (C) and then operate the link lift cylinder from the
cab to disengage center-link (A) from the header.
Figure 4.278: Header Drive Hydraulics
12. Disconnect header drive hydraulics (A) and electrical
harness (B). Refer to the header operator’s manual.
13. Back the windrower slowly away from the header.
Figure 4.279: Header Boot
14. Reinstall clevis pin (A) through boot (C) and secure it with
hairpin (B). Repeat this step on the opposite side of the
header.
