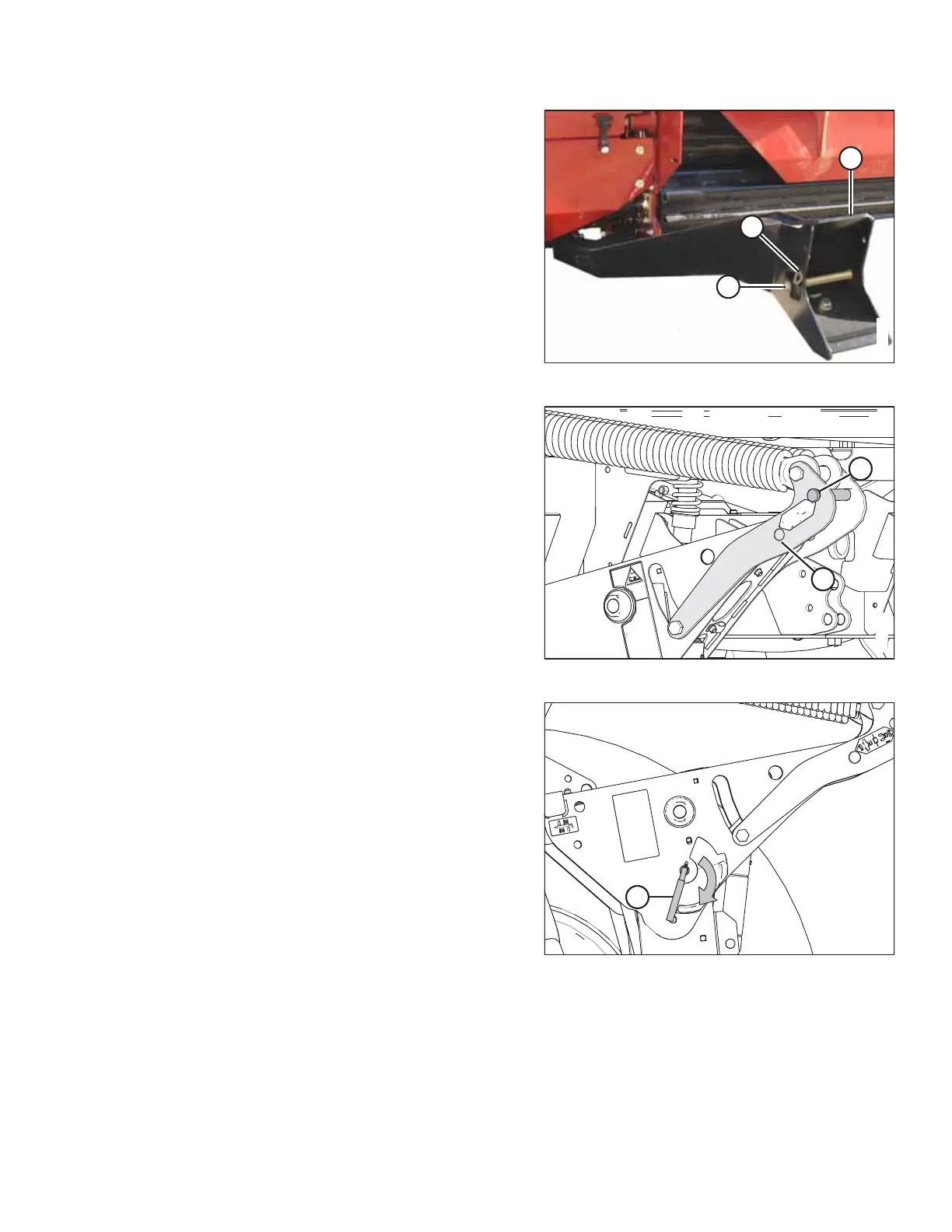

Figure 4.282: Header Boots
5. Remove hairpin (B) from clevis pin (A) and remove the pin
from left and right header boots (C) on the header.
Figure 4.283: Header Float Linkage
6. Remove the clevis pin from location (A) to disengage the
float springs. Insert the pin into storage hole (B). Secure it
with the hairpin.
IMPORTANT:
To prevent damage to the lift system when lowering the
header lift linkages without a header or weight box
attached to the windrower, ensure that the float
engagement pin is installed in storage position (B) and NOT
in engaged position (A).
Figure 4.284: Safety Prop
7. To disengage the safety props on the lift cylinders:
a. Turn lever (A) away from the header to raise the safety
prop until the lever locks into the vertical position.
b. Repeat the previous step for the opposite cylinder.
OPERATION
