215676 286 Revision A

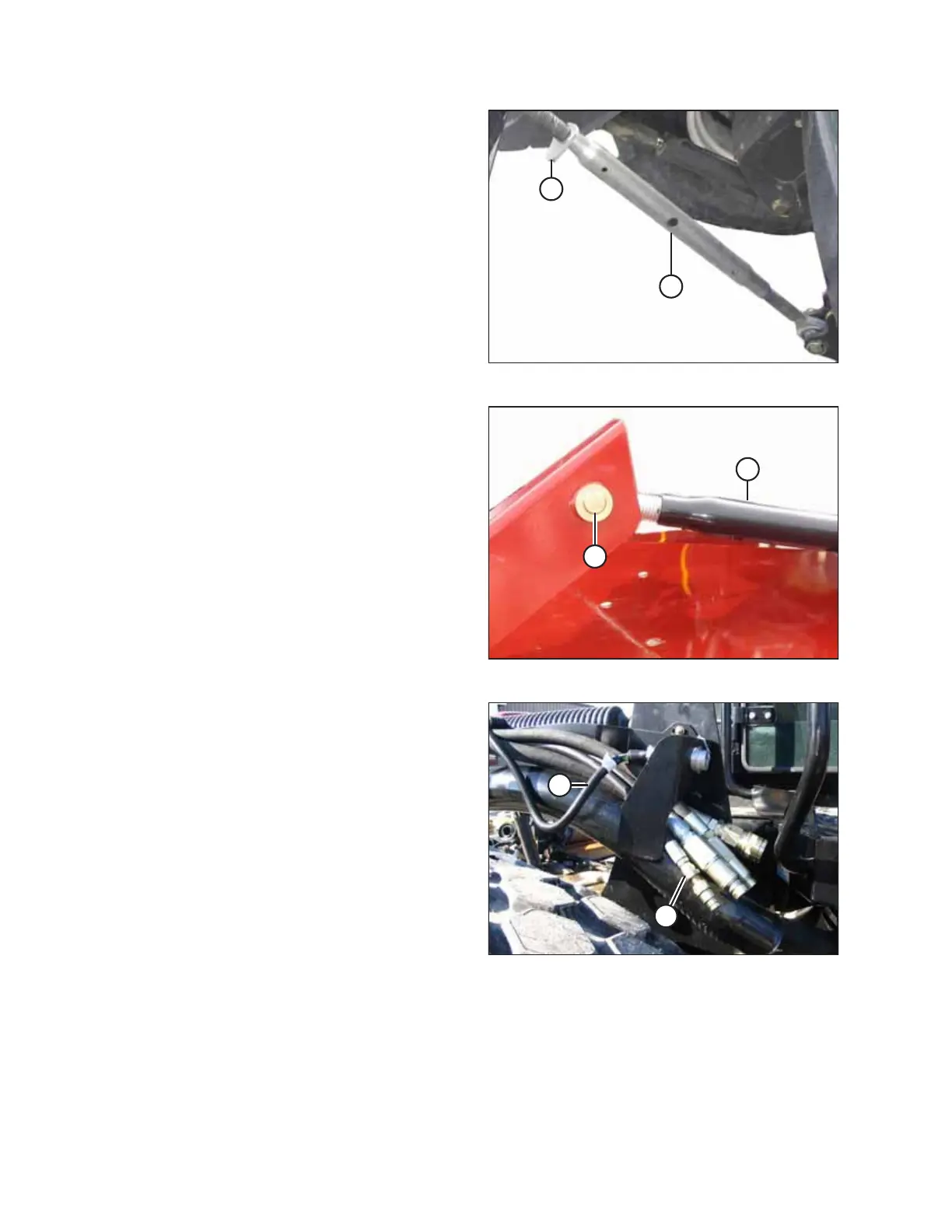

Figure 4.285: Mechanical Center-Link
8. Loosen nut (B) and rotate barrel (A) to relieve the load on
the link.
Figure 4.286: Mechanical Center-Link
9. Remove the cotter pin from clevis pin (B) and remove
pin (B). Reinstall the clevis pin in the header.
10. Tighten the nut against barrel (A). A slight tap with a
hammer is sufficient.
Figure 4.287: Header Drive Hydraulics
11. Disconnect header drive hydraulics (A) and electrical
harness (B). Refer to the header operator’s manual.
12. Start the engine and slowly back the windrower away from
the header.
OPERATION
