Adjusting Reel Speed while Windrower is in Motion
The reel speed on an A40D Auger Header can be adjusted by using the reel speed controls on the ground speed lever (GSL).
The reel speed can range from 15 to 85 rpm.

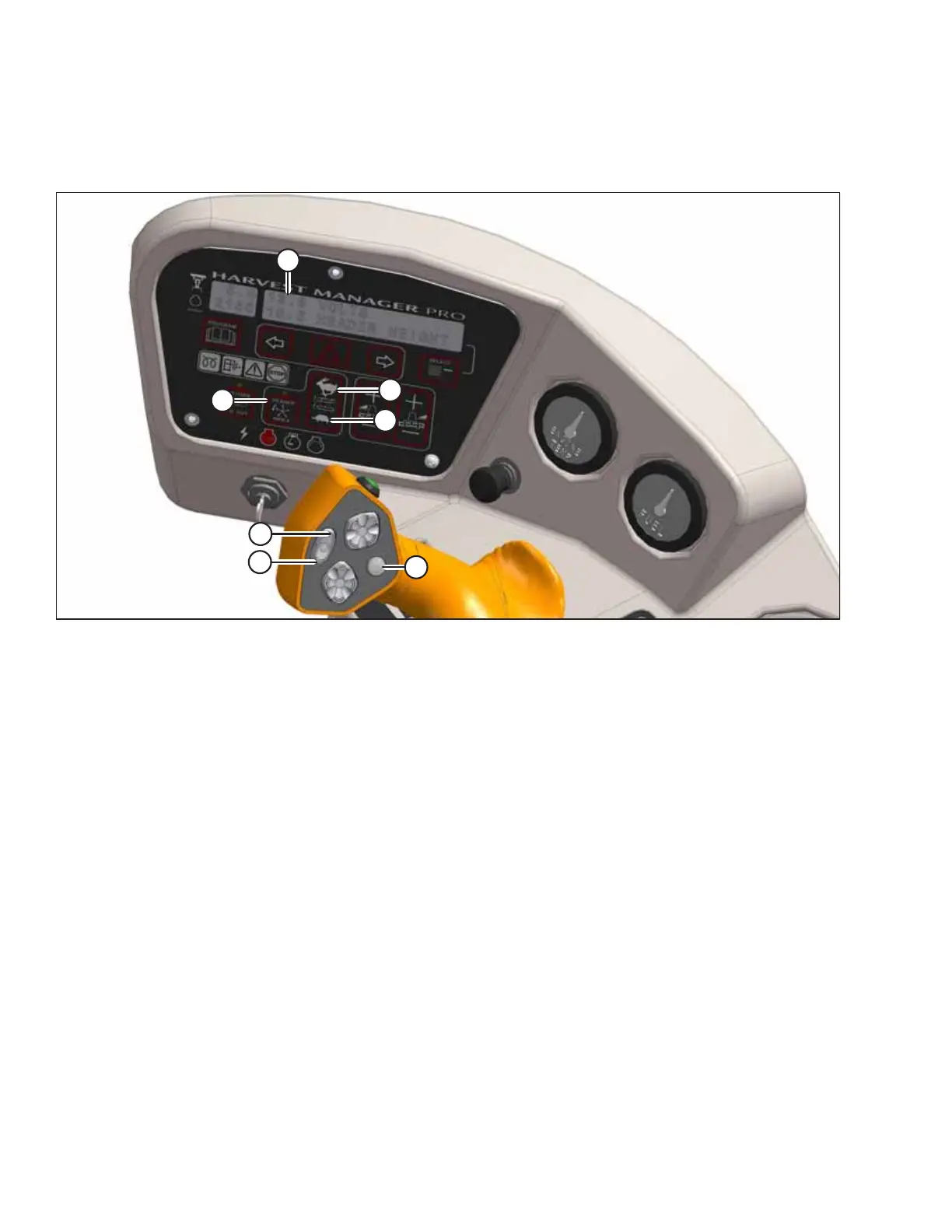

Figure 4.307: Operator Console
A - Display B - Header Index C - Auger Fast D - Auger Slow
E - Reel Fast F - Reel Slow G - Display Selector
1. Set HEADER INDEX switch (B) to OFF.
2. Press REEL SLOW button (F) or REEL FAST button (E) on the ground speed lever (GSL) until the message ##.## REEL
RPM appears at location (A). The displayed value (##.##) represents the reel speed in terms of rpm, mph, or km/h,
depending on how the cab display module (CDM) has been configured.
NOTE:
Adjusting the reel speed will directly affect the auger speed, unless the auger speed has been preset.
OPERATION
