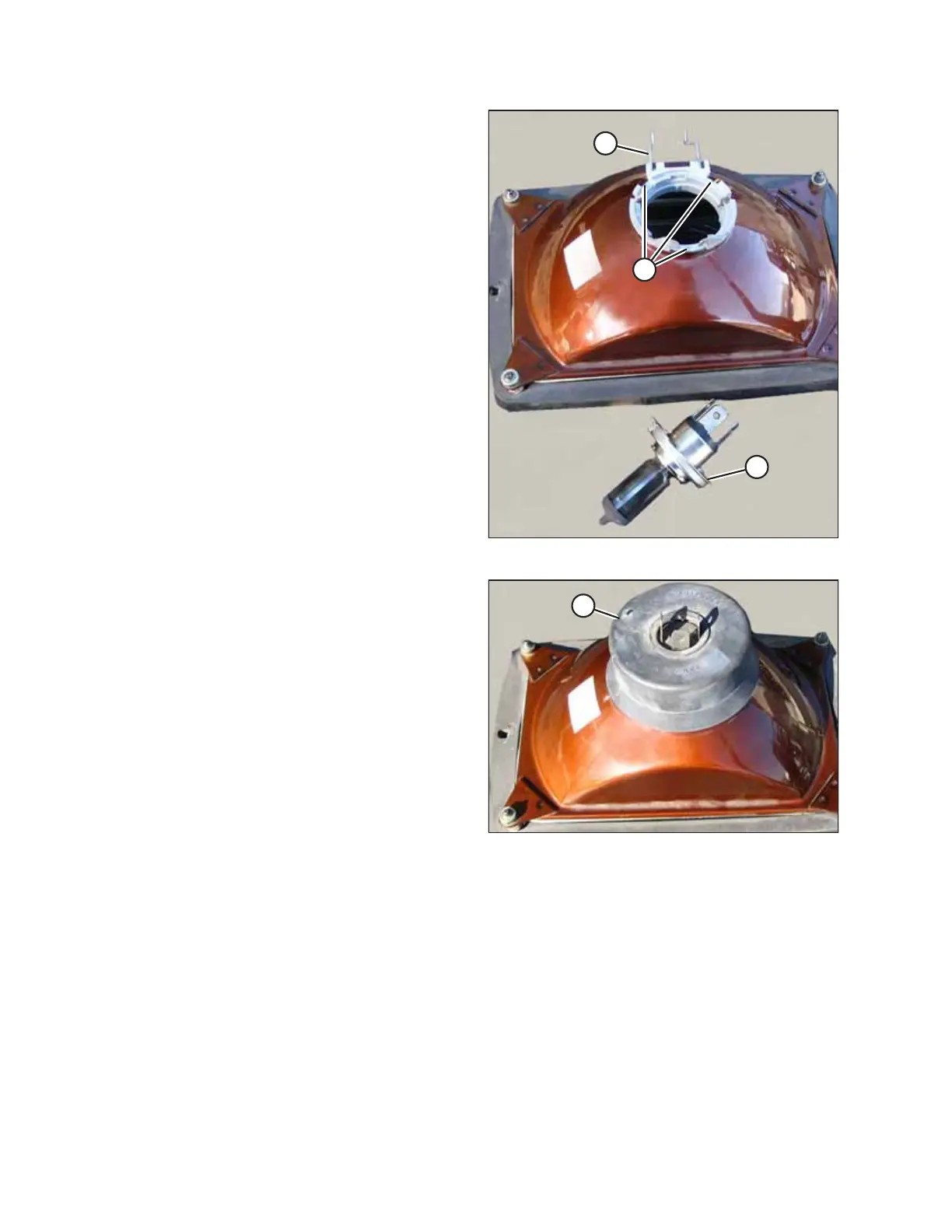

Figure 5.137: Headlight Assembly
5. Retrieve the new headlight. Align lugs (B) on the new bulb
with slots (C) in the body, and push the new headlight
into place.
IMPORTANT:
Do NOT touch the glass of the new light bulb when
installing it into the headlight body. Contaminants on the
surface of the bulb can cause hot spots, which can cause
the bulb to fail prematurely. Use a cloth or gloves when
installing the new bulb.
6. Secure the bulb with wire retainer (A).
Figure 5.138: Headlight Assembly
7. Replace rubber insulator boot (A).
8. Push the connector onto the light bulb.
