U–34
CONTROL SYSTEM
AIRFLOW MODE ACTUATOR INSPECTION
A6E854061070W02

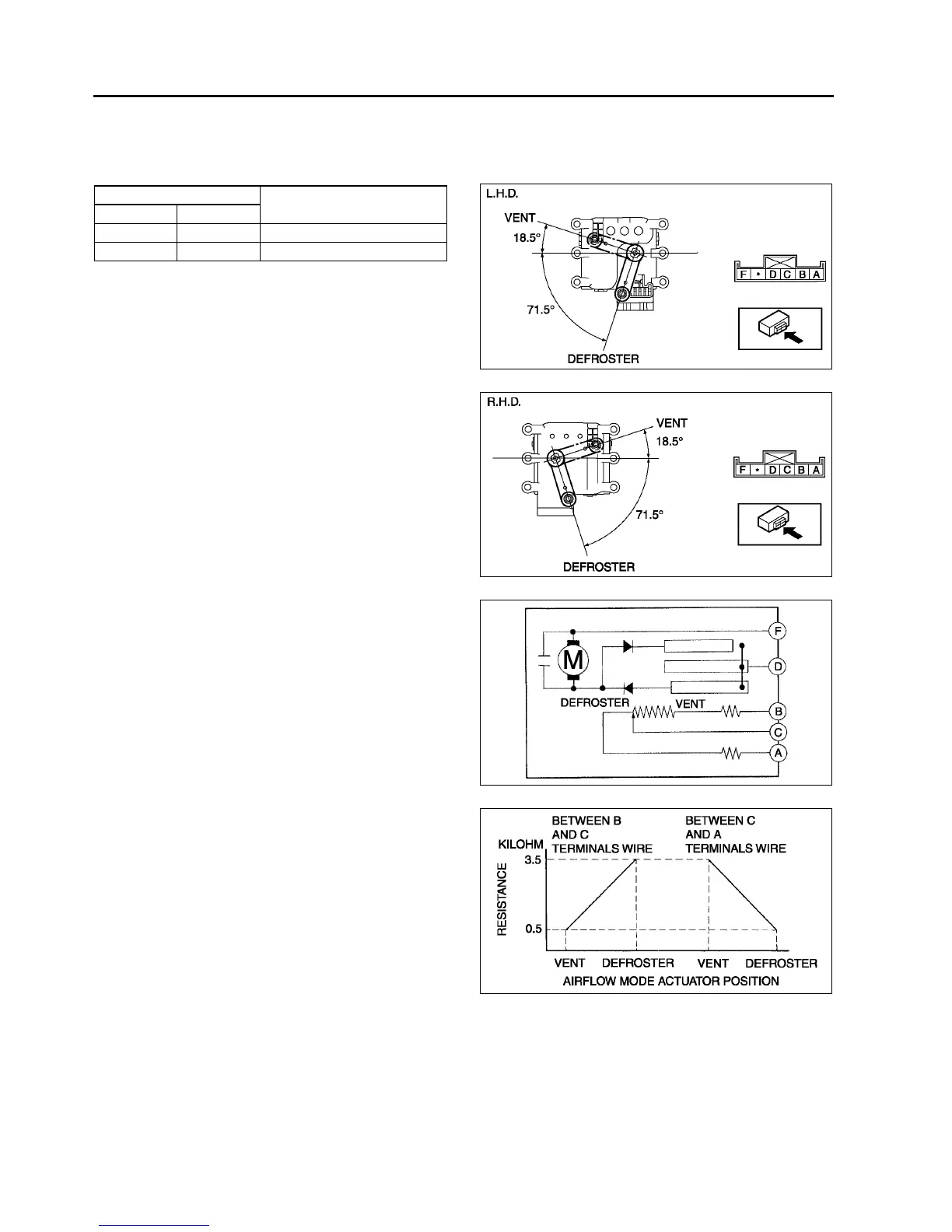

1. Connect battery positive voltage to terminal D or F and ground to terminal F or D of the airflow mode actuator.
2. Verify that the airflow mode actuator operates as shown below.
• If not as specified, replace the airflow mode actuator.
3. Verify that the resistance between the terminals
of the airflow mode actuator is as shown in the
graph.
• If not as specified, replace the airflow mode
actuator.
End Of Sie
Connection
Movement
B+ GND
D F DEFROSTER → VENT
F D VENT → DEFROSTER
A6E8540W008
A6E8540W009
A6E8540W046
A6E8540W047
